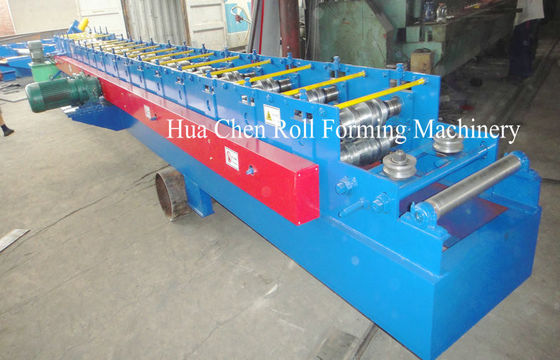

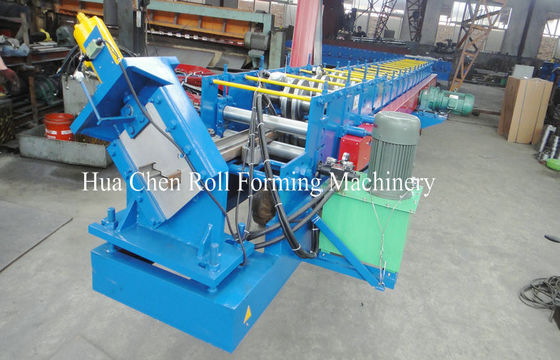

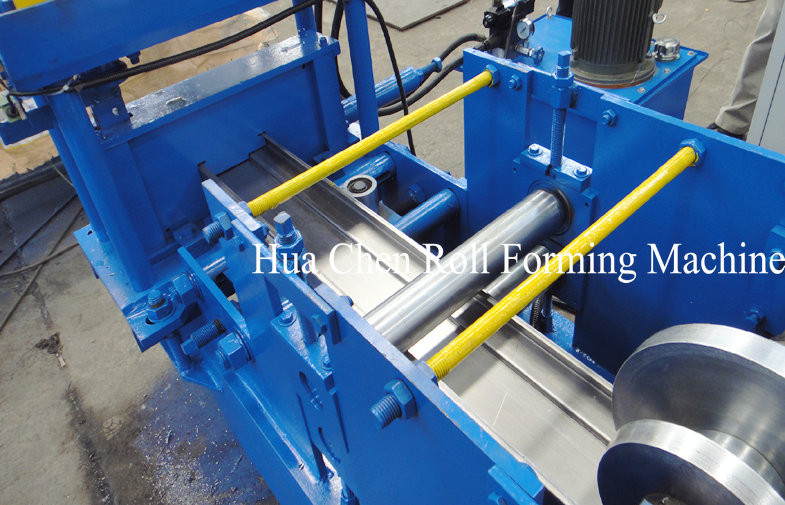

Door Frame Roll Forming Machine
Description:
Door Frame Roll Forming Machine Main parameter
|
No. |
Main parameter of Door Frame Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
260/310mm |
|
3 |
Rollers |
17 rows |
|
4 |
Dimensions |
8200*1350*1510mm |
|
5 |
Power |
5.5+4kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
0.6-1mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ80mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system- cutting
Application

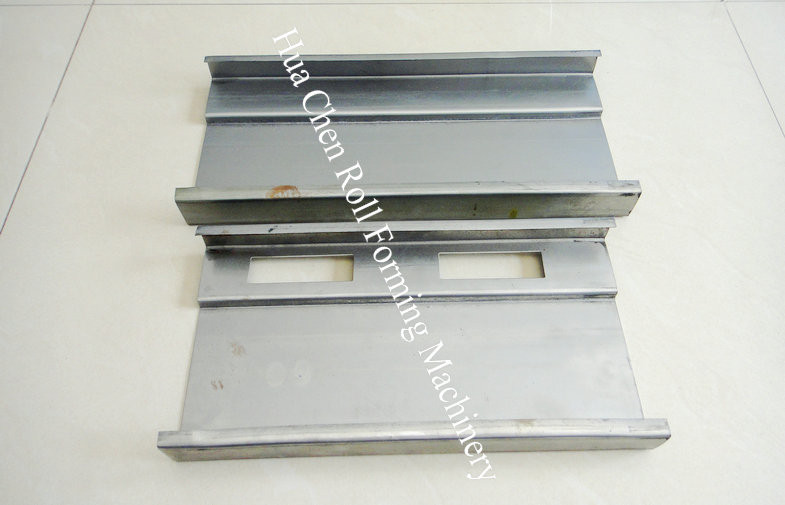

It can be used in the gate,inside door,window frame;nice appearance, durable
Competitive Advantage
1. sample customized
2. short production cycle
3. quality guarantee
4. high-effect, low consume
5. provide lifelong technical support
