50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen

Orzecznictwo
dobra jakość Maszyna do formowania rolek dachowych na sprzedaż
dobra jakość Maszyna do formowania rolek dachowych na sprzedaż
Maszyna łatwa w użyciu. Szef jest bardzo miły.

—— Mr.Angolon From Europe

To dobry producent, dobry angielski komunikator i lubię twoje maszyny. Jest dobrej jakości i ładna!

—— Mr. Mark z Afryki

Miły dostawca! Podoba mi się twoja szybka dostawa i szybki cykl produkcyjny, pozostaną w kontakcie z wami.

—— Mr.Jack From America

Im Online Czat teraz

50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen

Chiny 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen dostawca
50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen dostawca 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen dostawca 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen dostawca 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen dostawca 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen dostawca

Duży Obraz :  50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen

Szczegóły Produktu:

Place of Origin: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO
Model Number: HC285

Zapłata:

Minimum Order Quantity: 1set
Cena: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Szczegółowy opis produktu



Downspout Gutter Roll Forming Machine Application

Our Downspout Gutter Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Downspout Gutter Roll Forming Machine

Main Roll Forming Machine
Roller station 18 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 0.3-0.6mm

Others
Speed 10m/min
PLC system EURA or customized
Weight 4.5T


50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen
Downspout Gutter Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen

Automatic Steel Double Layer Roll Forming Machine Parts

Detailed Images

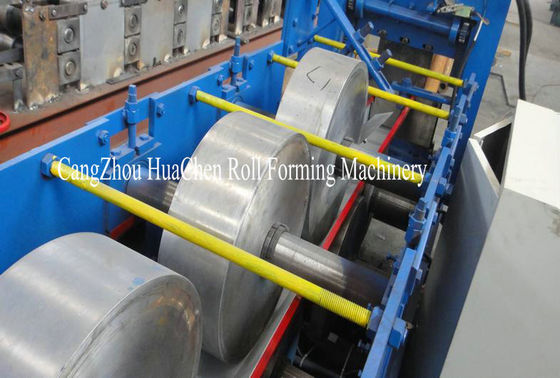

50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

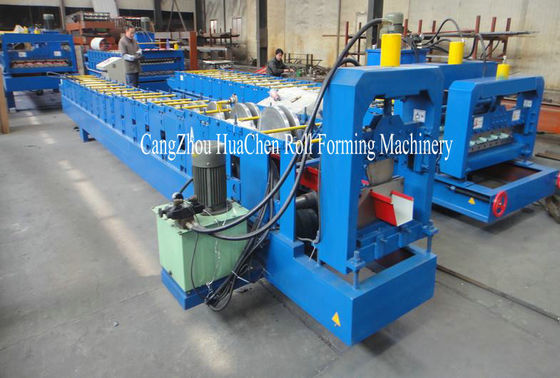

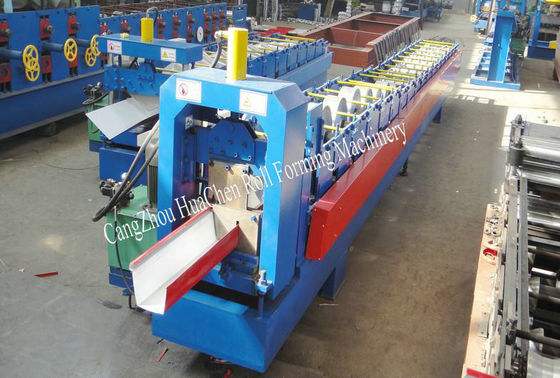

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen
50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen

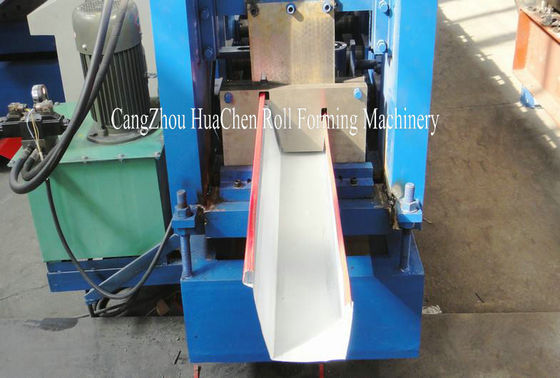

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen Size: 8600 (L) * 1550 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen 50HZ 3Phase Downspout Gutter Roll Forming Machine Controled by PLC with Touch Screen
