15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE

15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE
15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE

Duży Obraz :  15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE

Szczegóły Produktu:
Miejsce pochodzenia: China
Nazwa handlowa: HC
Orzecznictwo: ISO CE
Numer modelu: HC280
Zapłata:
Minimalne zamówienie: 1set
Cena: USD15000-30000
Szczegóły pakowania: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Czas dostawy: 30 work days
Zasady płatności: D/A, Western Union, L/C, T/T
Możliwość Supply: 20 sets per month

15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE

Opis
Material: PPGi GI capacity: 2-4m/min
machine weight: 3.1T rollers: 45# steel
Type: Roll Forming Machine warranty: 12 month
technical support: whole life
High Light:

roll form equipment

,

cold roll forming equipment

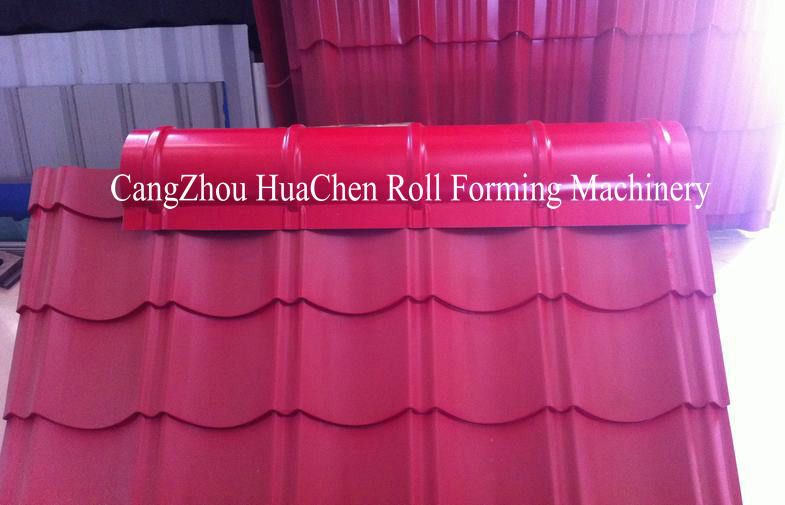

Roof Ridge Cap Tile Roll Forming Machine Application

Our Roofing Tile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Roof Ridge Cap Tile Roll Forming Machine

Main Roll Forming Machine
Roller station
15 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
2-4m/min
PLC system
EURA or customized
Weight
3.1T


15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 0
15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 1     15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 2

Roof Ridge Cap Tile Roll Forming Machine​ Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 315 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 415 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 5

Roof Ridge Cap Tile Roll Forming Machine​ Parts

Detailed Images

15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 6

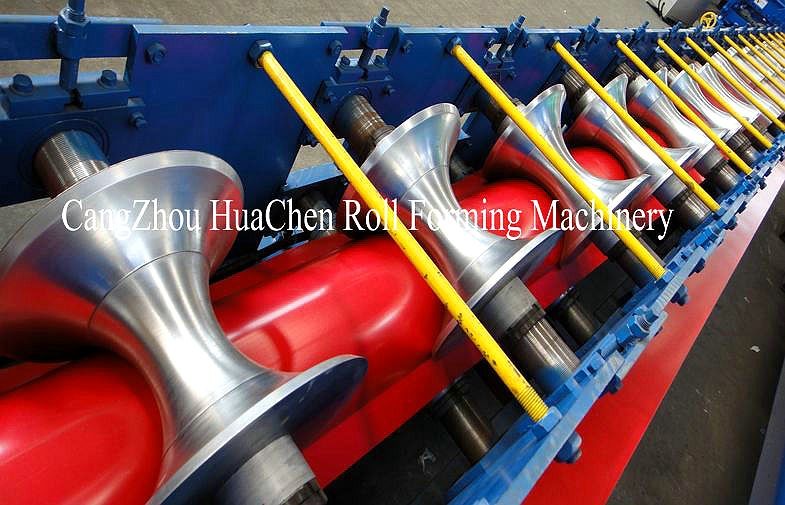

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

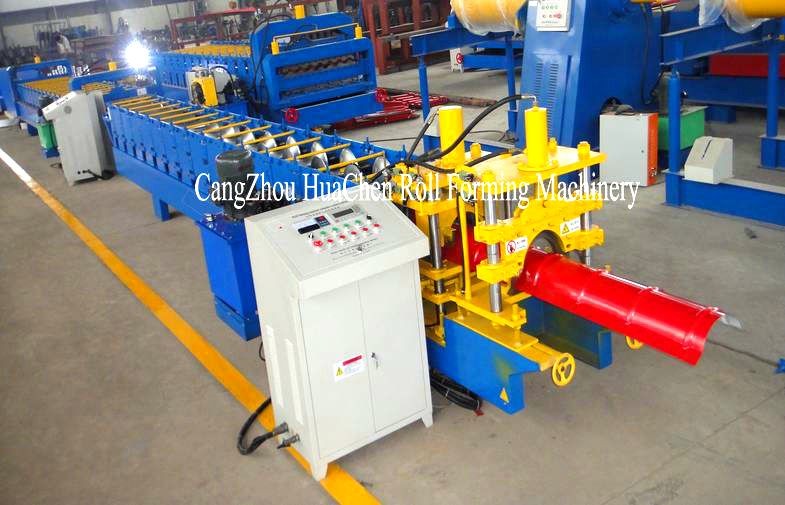

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 2
15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 8 PLC control system

Brand : EURA or Customized
EURA PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC.  In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the HIM (Human Machine Interface) is very easy to be adopted by any level of operators.

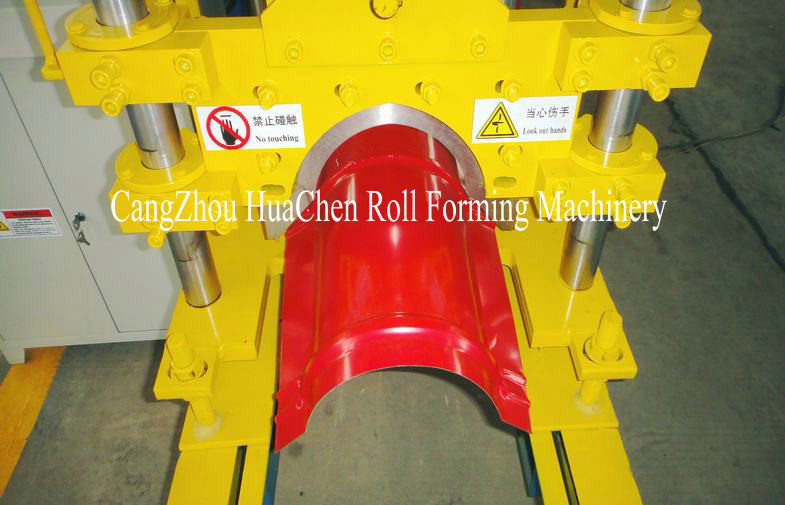

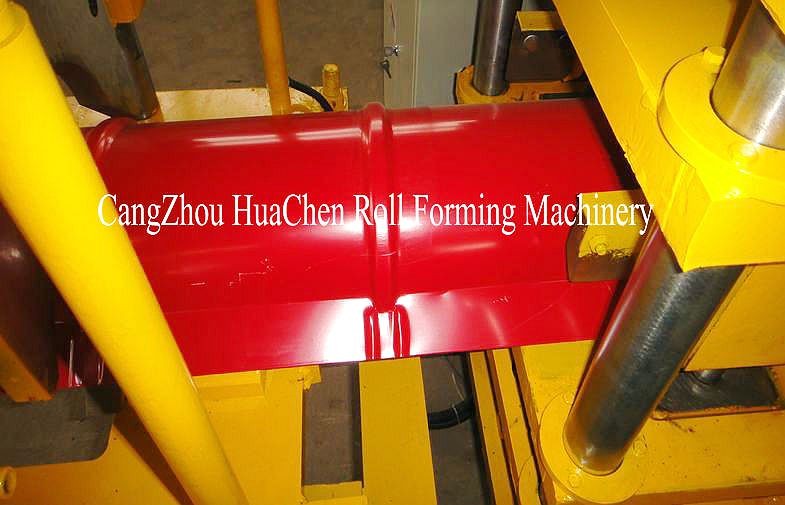

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment

15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 9



Our Service



15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 1015 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 11

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 12

Size: 7600 (L) * 850 (W) * 1510 (H)
Weight: 3.1T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 13 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 14 15 Rollers Steel Roof Ridge Cap Tile Roll Forming Machine ISO CE 15
