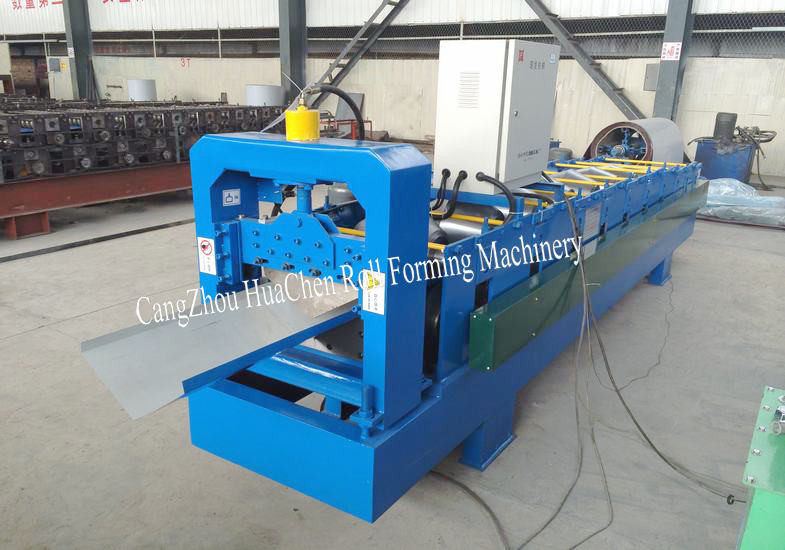

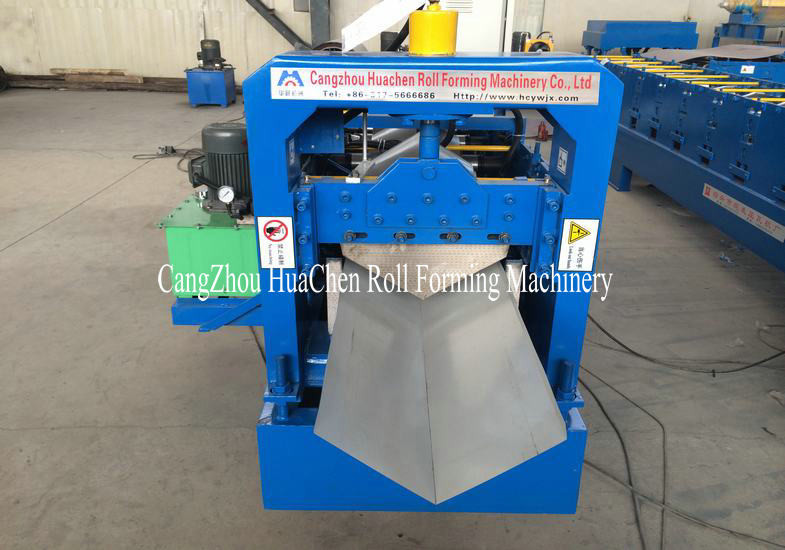

Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min

Chiny Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min dostawca
Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min dostawca Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min dostawca Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min dostawca Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min dostawca Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min dostawca

Duży Obraz :  Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min

Szczegóły Produktu:

Place of Origin: China
Nazwa handlowa: HC
Orzecznictwo: ISO CE
Model Number: HC400

Zapłata:

Minimum Order Quantity: 1set
Cena: USD8000-16000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Szczegółowy opis produktu
Material: PPGi GI capacity: 8-10m/min
machine weight: 3.1T rollers: 45# steel
Type: Roll Forming Machine warranty: 12 month
technical support: whole life


Ridge Cap Roll Forming Machine Application

Our Roofing Tile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Ridge Cap Roll Forming Machine

Main Roll Forming Machine
Roller station
11 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
8-10m/min
PLC system
EURA or customized
Weight
3.1T


Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/minCommercial Roof Steel Ridge Cap Roll Forming Machine 10m/min    Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min


Ridge Cap Roll Forming Machine​ Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/minCommercial Roof Steel Ridge Cap Roll Forming Machine 10m/minCommercial Roof Steel Ridge Cap Roll Forming Machine 10m/min

Ridge Cap Roll Forming Machine​ Parts

Detailed Images

Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min

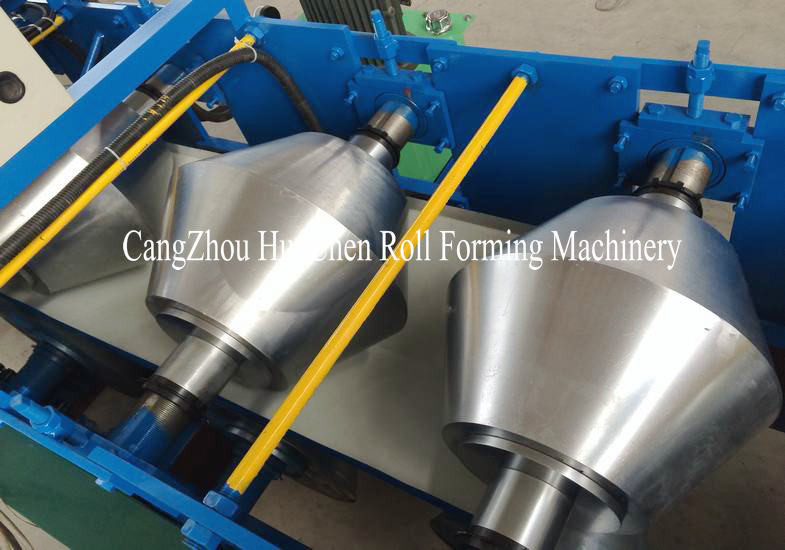

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

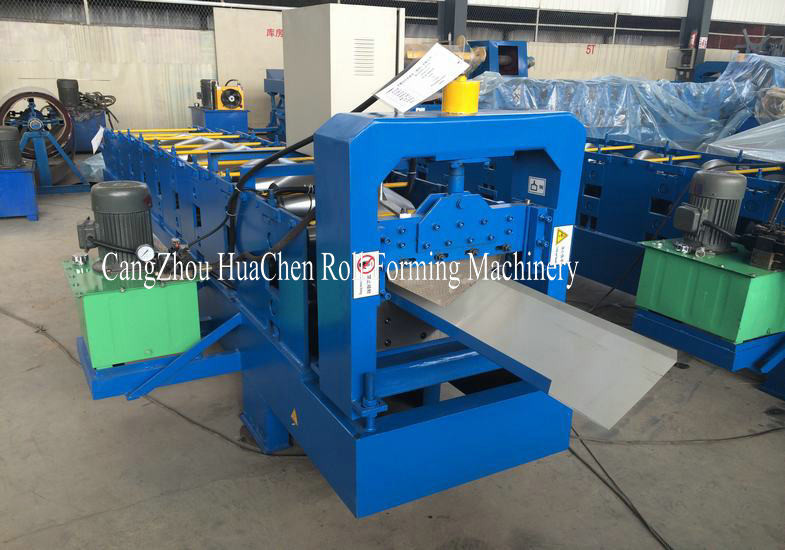

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min
Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min PLC control system

Brand : EURA or Customized
EURA PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC.  In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the HIM (Human Machine Interface) is very easy to be adopted by any level of operators.

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment

Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min



Our Service



Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/minCommercial Roof Steel Ridge Cap Roll Forming Machine 10m/min

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min

Size: 5800 (L) * 850 (W) * 1510 (H)
Weight: 3.1T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min Commercial Roof Steel Ridge Cap Roll Forming Machine 10m/min
