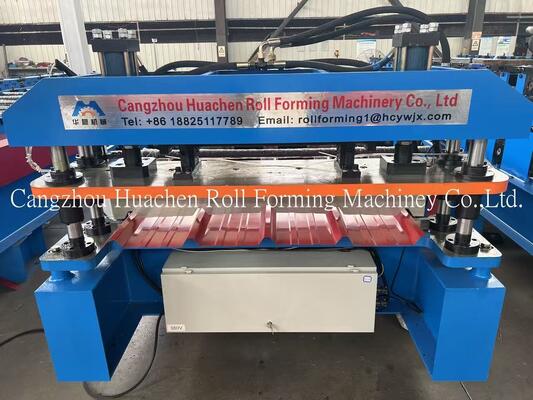

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment
Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment
Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Duży Obraz :  Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Szczegóły Produktu:
Miejsce pochodzenia: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO
Numer modelu: HC25
Zapłata:
Minimalne zamówienie: 1set
Cena: 8000-29000USD
Szczegóły pakowania: Main machine is nude,the computer control box is packed by carton box
Czas dostawy: 30days
Zasady płatności: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Możliwość Supply: 20 sets/month

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment

Opis
type: Aluminium Metcopo Step Tile Roof Sheet Forming Machine Rollform Equipment rollers: 11
roller material: No.45 steel warranty: 12 month
Voltage: 380V 50Hz 3phases Material of the cutting plate: Cr12
Main frame: 350H Steel
High Light:

cold roll forming machine

,

roof panel roll forming machine



Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment



General Introduction



The aluminum metcoppo steptiles roof sheets made by this aluminium corrugating machine is a new tile model compared with the normal step tile roof sheets. The whole aluminum metcopo stepped tile roofing sheets production line consists of 5 tons automatic electric decoiler, sheet guilder, corrugation machine, hydraulic cutter, supporting tables and Mitsubishi PLC controller. With this rolling machine, the operator can produce metcopo steptiles with any length.



Application

Aluminium Metcopo Step Tile Roof Sheet Forming Machine Rollform Equipment



Technical Parameters of Alluminium Metcopo Step Tile Corrugating Machine



(1) processing material: Aluzinc/galvanized steel/colored steel coil
(2) material thickness: 0.4-0.6mm
(3) effective width: 930mm
(4) feeding width: 1200mm
(5) main motor power: 5.5 kw
(6) pump power: 5.5 kw
(7) shaft diameter: 72 mm
(8) forming steps: 18 steps
(9) roller material: 45# forged steel with hard chrome plating

(10) cutting blades material: Cr12 mould steel
(11) main frame: H steel beams
(12) wall plate thickness: 16mm
(13) control system: Mitsubishi PLC computer control with inverter
(14) power supply: 380v/3 phase/50hz or designed according to customers' requirement



Main Components of Metcopo Step Tiles Corrugating Machine:

  • Uncoiler
  • Coil Sheet Guiding and Adjusting Equipment
  • Film Covered Device
  • Main Corrugation System
  • Post-Cutting Device
  • Hydraulic Station for Cutting and Step Pressing
  • PLC Control System
  • Support Tables

Working Flow of Metcopo Steptile Corrugation Machine


Decoiling Sheet---Guiding Sheet---Covering Film---Roll Forming---Measuring The Length---Cutting Sheet---Runout Tables

Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment 1Aluminium Metcopo Step Tile Roof Sheet roll forming line , Rollform Equipment 2
