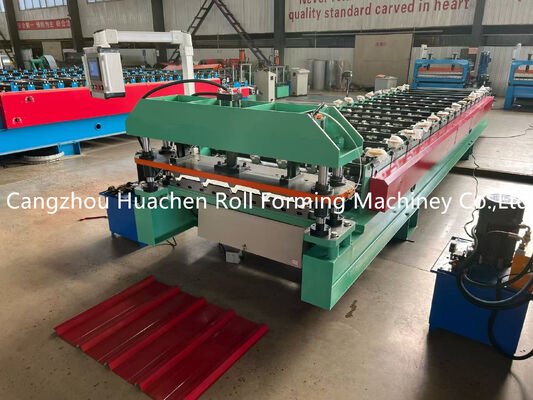

Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof
Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

Duży Obraz :  Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

Szczegóły Produktu:
Place of Origin: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO
Model Number: HC12
Zapłata:
Minimum Order Quantity: 1set
Cena: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof

Opis
type: Colors Metal Sheet Roof Tile Roll Forming Machine For Building Wall And Roof rollers: 12
roller material: No.45 steel warranty: 12 month
Shaft material: High Grade No.45 Steel Main frame: 350mm H-Beam
Cutting blade: Cr12 Mould Steel
High Light:

cold roll forming machine

,

roof panel roll forming machine

Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof





Technical data of steel corrgated roll forming machine

Suitable material color steel sheet;0.3-07mm,
Working speed about10-25m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 4Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)



Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof 0Colors Metal Tile Roofing Sheet Roll Forming Machine For Building Wall And Roof 1

Layout drawing of machine



Colors Metal Sheet Roof Tile Roll Forming Machine For Building Wall And Roof





Our Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.



5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.



6. powerful driving system: big inch train,or gear box driving system.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



producing process:



We can also customize the products according to customer ' s requirements
