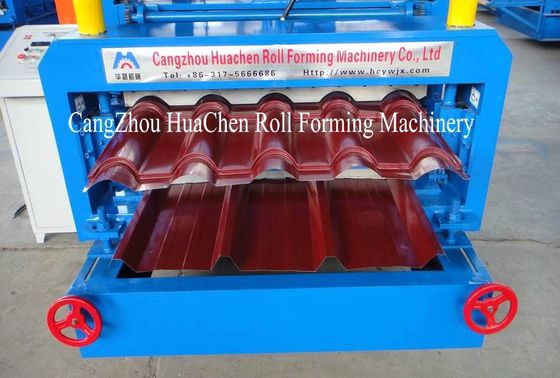

Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment

Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment
Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment

Duży Obraz :  Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment

Szczegóły Produktu:
Place of Origin: CN
Nazwa handlowa: HC
Orzecznictwo: CE ISO
Model Number: HC35-50
Zapłata:
Minimum Order Quantity: 1 set
Cena: USD19000-25000 per set
Packaging Details: Standard package
Delivery Time: 35 days
Payment Terms: D/A, L/C, D/A, D/P, T/T
Supply Ability: 20 sets per month

Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment

Opis
Usage: Roof and wall Material: PPGI, GI
Operation: Need 1 person Capacity: 2-10m/min
Weight: 6T Size: 7*1.55*1.91m
Life time: 30 Years Warranty: Whole life
High Light:

metal roll forming machine

,

corrugated roll forming machine

Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment



Competitive Advantage:


1. Full Automatic
2. Durable
3. Heavy Duty
4. Smooth sheet
5. Operate easily

Specification

NO. ITEM PARAMETER NOTE
1.


Suitable
material
Type Pre-painted sheet,
Galvanized sheet

Width(mm) 1200mm
Thickness(mm) 0.3-0.8mm
Yield stress(mm) G220-G300
2. Product
specifications
Detail as the attached file
Length Any length
3. Power
requirement
Type 3800v/3ph/50hz
Main Motor power 7.5kw
Cutter power 4kw
4. Forming speed(m/min) 10-20m/min Not include the time of cutting
5. Manual Decoiler

(Optional)
Type Manual
Max capacity 5t
Suitable coil OD(MM) 1200
Suitable coil
ID(MM)
508
6. Forming stand 15/21 Depend on actual design
7. Thickness of structure 16mm
8. Forming shaft diameter(mm)70 solid
9. Type of cutting

Roll formed and

length-set cutting


10. Control system Panasonic PLC and inverter
11. Install dimension(depend on the final design) 8.2m×1.1m×1.3m Without panel length
12. Total weight (Approx) 9.6T Depend on final design


Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment 0

Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment 1Color Steel Galvanized Double Layer Roll Forming Machine , Roof Panel Roll Form Equipment 2

Flow chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→

Auto cutting→Products receiving
color steel galvanized metal roof wall panel double layer roll forming machine
MachineComponents

No Name Quantity Remarks
1 Decoiler 1set Up to customer
2 Main machine Pre-cutting device 1set Up to customer
Feeding device 1set
Roll forming system 1set
Post cutting device 1set
Hydraulic system 1set
3 Electric control system 1set
4 Supporter/Automatic Stacker

1set
