Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min
Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min

Duży Obraz :  Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min

Szczegóły Produktu:
Place of Origin: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO
Model Number: HC25-18
Zapłata:
Minimum Order Quantity: 1set
Cena: 15000-49000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min

Opis
Transmission: Gear box or chain driving Shaft dia: 70
Market: Germany Roller: 45# Steel
Capacity: 15m/min
High Light:

metal roll forming machine

,

sheet metal roll forming machines



Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min



1. Specification of the material

1 Suitable Material PI/ PPGI
2 Width of the raw material 1250mm
3 Thickness 0.3-0.8mm



2. Machine Detailed Parameters

1

Roll Forming Machine



YX28-200-1000/ YX29-210-1050
2

Machine structure



Guide pillar structure
3 Total power

Motor power-7.5kw

Hydraulic power-5.5kw

4

Roller stations



Up layer- 20 stations

Down Layer-20 stations

5

Productivity



0-15m/min
6

Drive system



By chain
7

Diameter of shaft



¢70mm solid shaft
8

Voltage



380V 50Hz 3phases (Customized)
9

Color Of The Machine



Bule and yellow
10

Deliver time



70 days
11

Terms Of Payment



30%T/T 70% pay before shipment

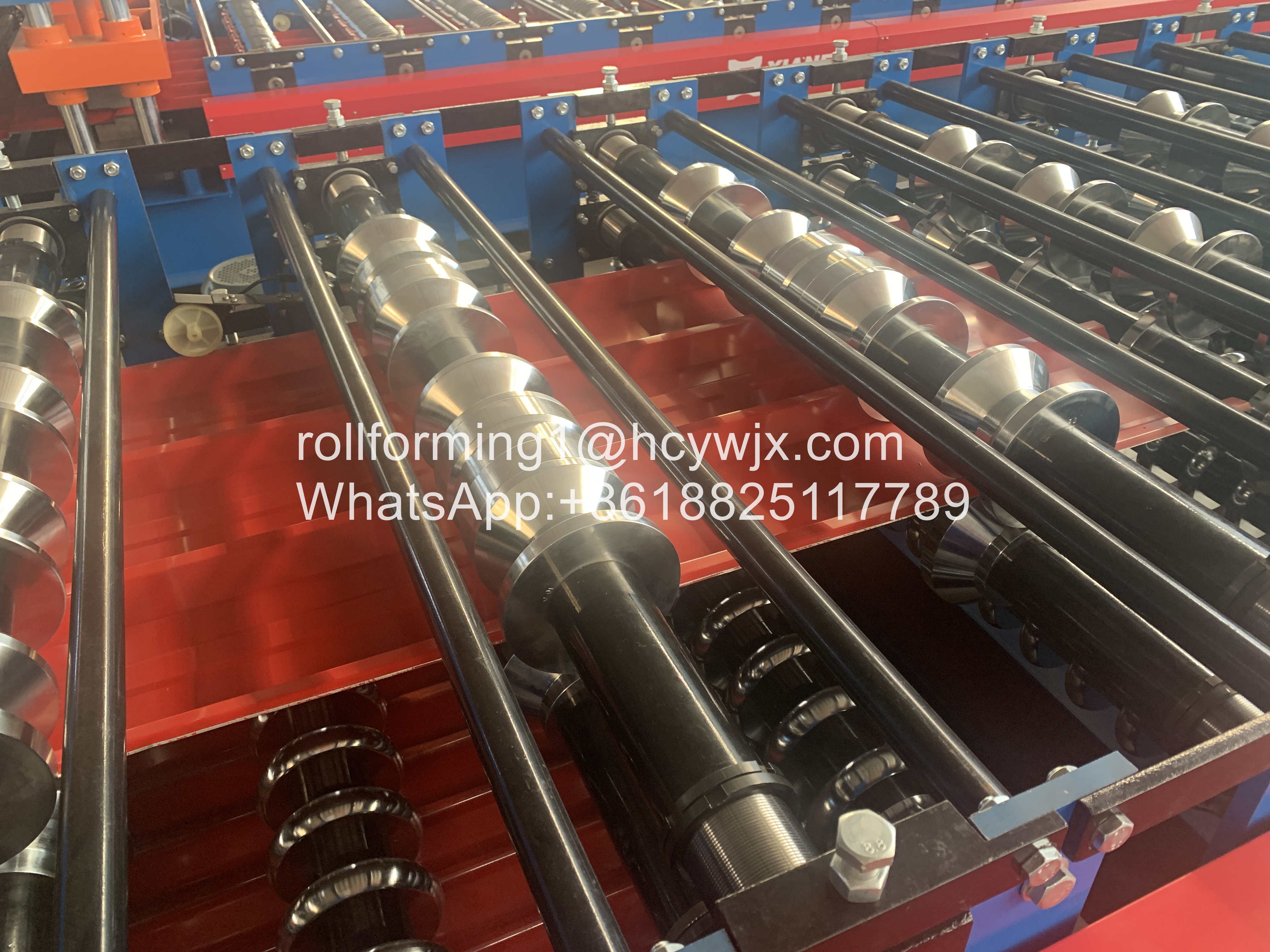

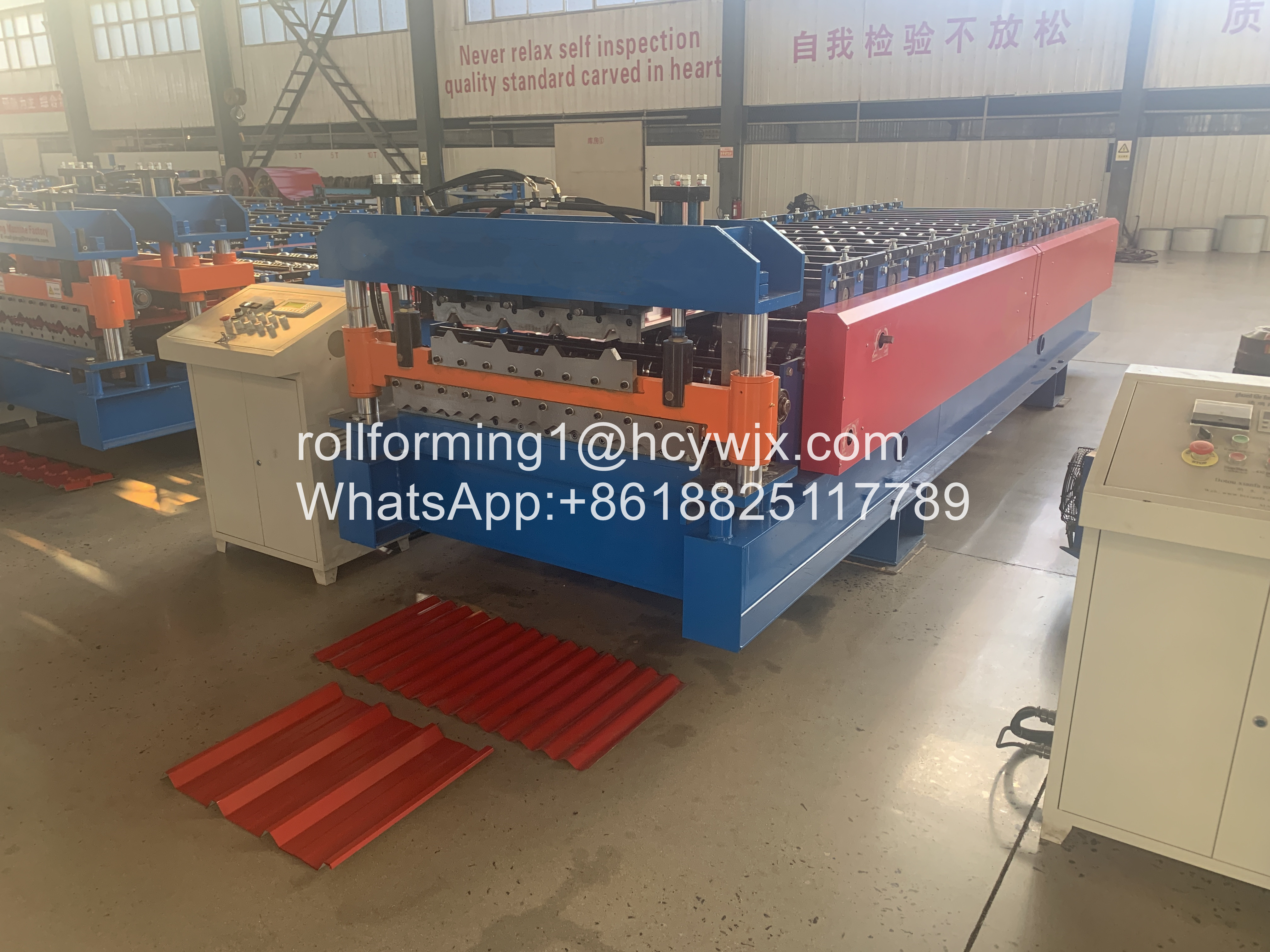

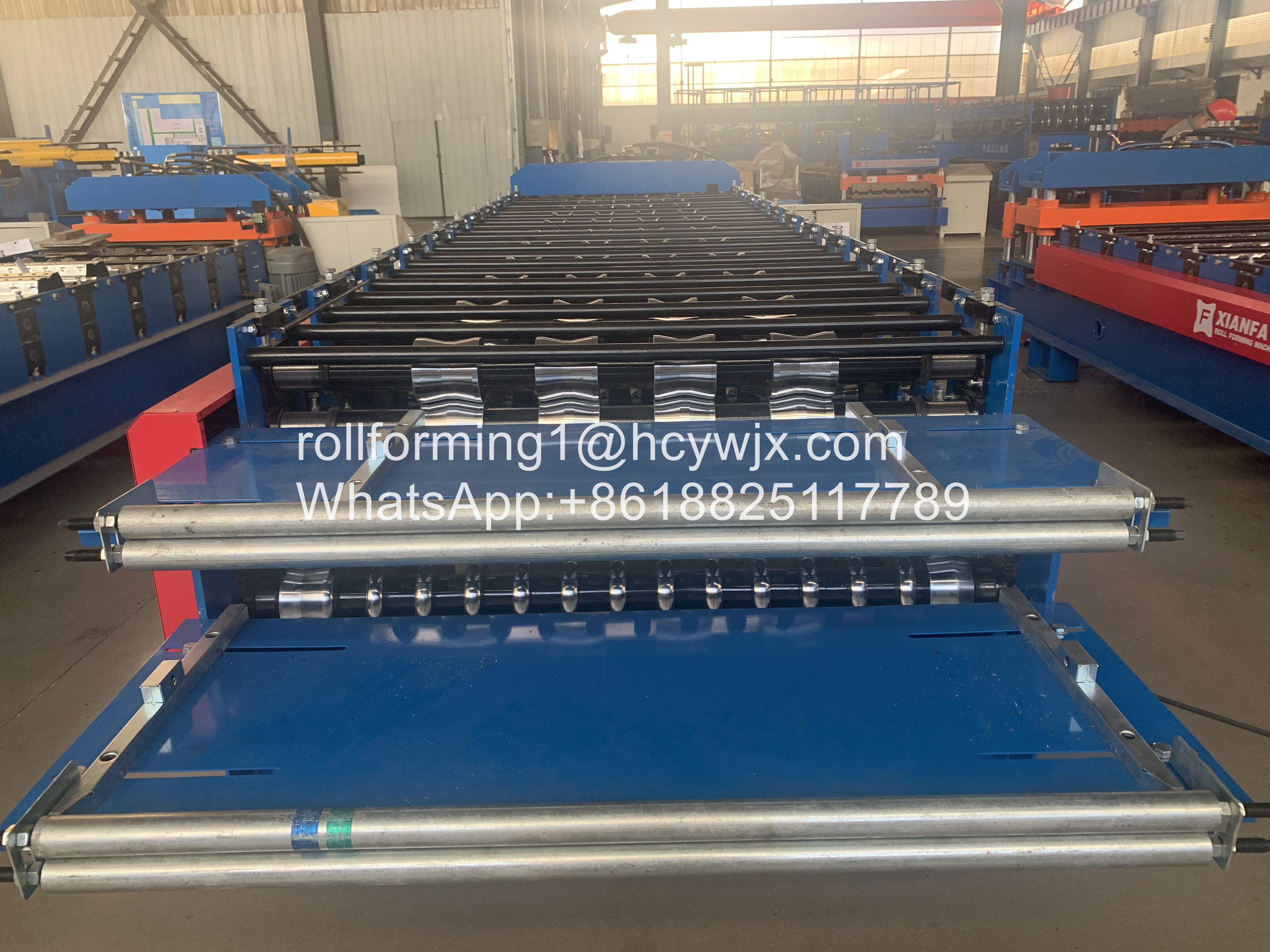

3. Reference pictures

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler , 15m / min 0



4. The Chart of Process Flow



Hydraulic Decoiler—Roll Forming—Cutting—Auto Stacker

Auto Stacker Double Layer Roll Forming Machine with Hydraulic Decoiler 15m/min





5. Specification of Components



(1) 5T Hydraulic Un-coiler

  • Width of feeding: 1250mm
  • Capability: 5 Ton
  • Inter diameter: 470-520mm
  • Maximal out diameter: 1500mm
  • Main motor power: 5.5KW AC motor
  • Hydraulic power: 4kw



(2) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢70mm material: SAE1045 with quenching and tempering
  • Main frame by 350H beam welding
  • Machine structure: guide pillar



(3) Hydraulic Cutting System

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product



(4) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization



(5) Auto Stacker

  • Run out motor power: 0.75KW
  • Max stacking length: 6m
  • Max stacking thickness: 300mm
  • Max stacking weight: about 2.5 tons
