ISO Power Floor roof tile roll forming machine with Gear Box Transmission

Chiny ISO Power Floor roof tile roll forming machine with Gear Box Transmission dostawca

Duży Obraz :  ISO Power Floor roof tile roll forming machine with Gear Box Transmission

Szczegóły Produktu:

Place of Origin: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO
Model Number: HC17

Zapłata:

Minimum Order Quantity: 1set
Cena: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Szczegółowy opis produktu



ISO Power Floor roof tile roll forming machine with Gear Box Transmission



Technical Datas of Floor Tile/Roof Wall Panel Roll Forming Machine



1 Material Width 914-1580mm
2 Effective Width 680-1350mm
3 Thickness of Coil 0.28—1.8mm
4 Application Wall Sheet and Roof Sheet
5 Estimated Dimension (8000-14000)mmX1500mmX1300mm
6 Total Weight 5-15 Tons
7 Main Power 5.5-37 KW
8 Decoiler Manual or Hydraulic Decoiler
9 Inner Diameter 508--610-640mm
10 Outer Diameter 1200mm
11 Loading Weight 5-15T
12 Forming Speed 12—30m/min
13 Forming Station 14-25
14 Bracket Welded with 36 # I-steel
15 Material of Shaft

High Grade 45# Steel with 1st Rough Finished and

then 2th Refined Finished

16 Diameter of the Roll 75-100mm
17 Material of Roller

High Quality 45#Steel Coated with

Hard Chromium 0.05mm

18 Processing Technology Rough Processing ---Refined Processing--Hard Chromium Plating.
19 Material of Rack

Complete Welded Structure of A3 Steel

Plate 20 mm Thickness

20 Transmission Chain or Gear Box
21 Material of cutting blade Cr12 with Quenched Treatment 60-62 °
22 Cutting system Hydraulic Stop or Tracking Cutting
23 Voltage

380V/50HZ/3 Phase or as Customer Require



Floor Tile Forming Machine/Roof Wall Panel Roll Forming Machine -- Very Popular

1. We have a special engineer design, who has worked for big German, K.S.A, Yemen, Taiwan etc company for more than 20 years.

2. The whole lines are Taiwan Design, while made in China, saving your cost more than half but equally perfect quality.

3. The whole lines are made to be very heat and cold resistant, making it work well in very extremly hot or cold environment such as Mid East or Turkey.

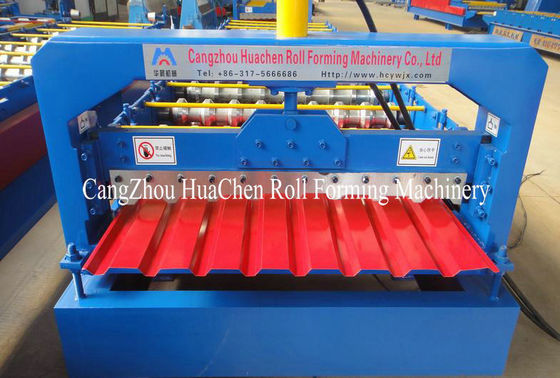

ISO Power Floor roof tile roll forming machine with Gear Box Transmission

Floor Tile Forming Machine/Roof Wall Panel Roll Forming Machine -- Configuration



10 Tons Decoiler(manual or hydraulic) -- 1 unit

Roll Forming Machine -- 1 unit

Tracking Cutting System -- 1 unit

PLC Control -- 1 unit

Hydraulic Station -- 1 unit

12m Auto Stacker or Run Out Table -- 1 unit

Spare Tools --1 box



Floor Tile Forming Machine/Roof Wall Panel Roll Forming Machine -- Working Process



10 T Hydraulic Decoiler with Coil Loading Car → Guided Feeding →Roll Forming→

Hydraulic Tracking Cutting → 12 m Automatic Stacker
