Automatic Ridge Cap Roll Forming Machine , roof Tile Manufacturing Machine Hydraulic Cutting
Metal Roof Ridge Cap Roll Forming Machine Used with Colorful Roofing Tile Sheets
The cap ridge roll forming machine is to produce angel title saving human resources and lower labor cost. This equipment is made up of automatic discharge table, feed leading table, and main forming machine, cutting device, hydraulic station and computer control system. Especially, the Optional system is normal uncoiler and hydraulic uncoiler.
This product is widely used in many kinds of industrial factory, civilian buildings, and wall board for attached part product. It has advantage of pretty appearance, durable using and so on. It is producted continuously as roll forming machine instead using bending machine to make angel tile saving human resources, lower labor cost.

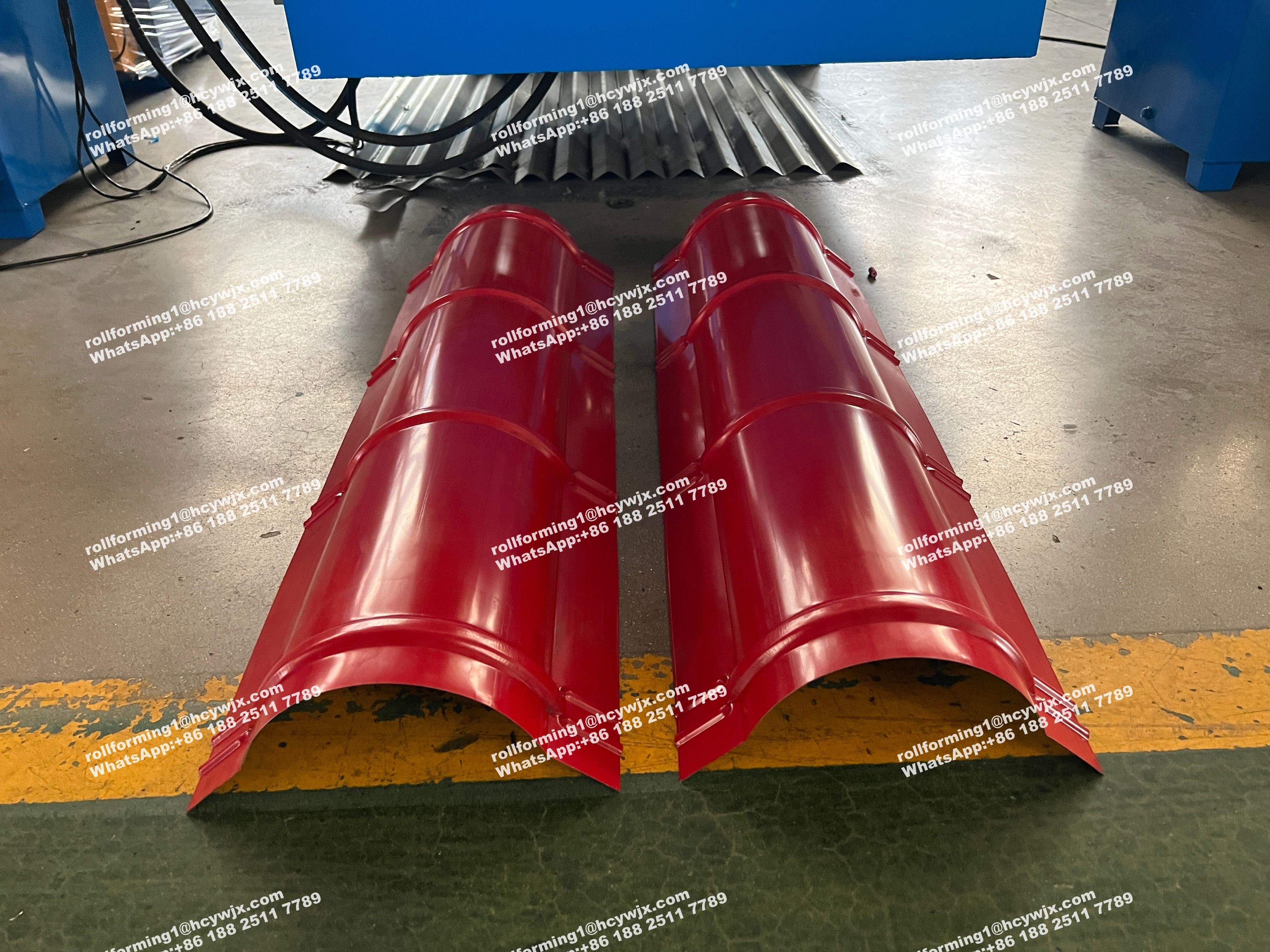

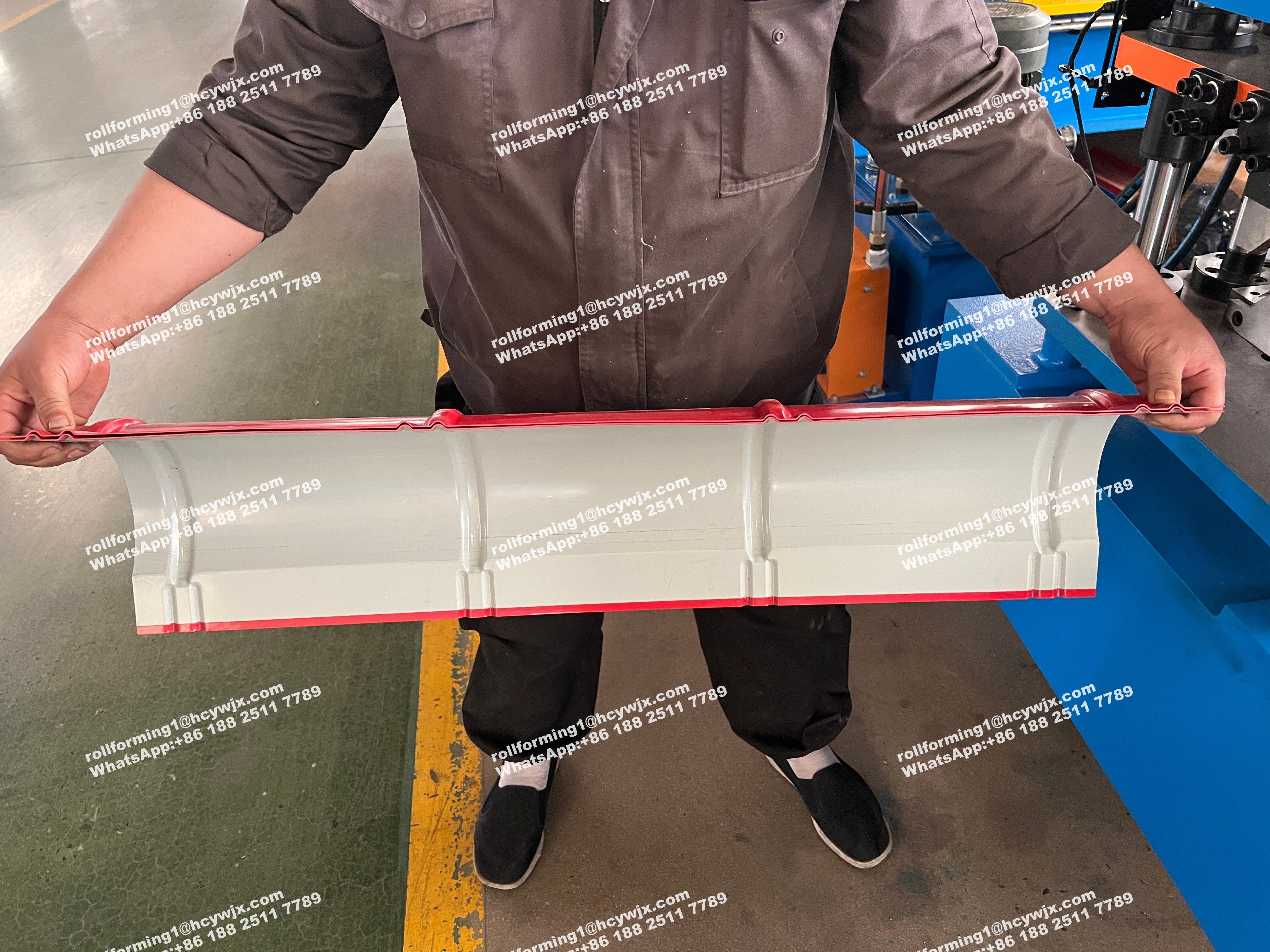

The roof ridge cap roll forming machine can form metal ridge which is mostly used with colorful roofing tile sheets. After roll formed by this machine, the surface will be smooth and beautiful without any scratch on surface.
The main detail specification as follows:
Material thickness: 0.4-0.8mm
Working speed: 12-30m/min
Roll station: 10 stations
Main power: 5.5KW
Hydraulic power: 3KW
Control system: PLC Panasonic
Drive: by chain
