Szczegóły Produktu:
|
| Power(W): | 4+5.5kw | Warranty: | 18 month |
|---|---|---|---|
| control system: | PLC control system | Width of the plate: | 1200mm |
| working speed: | 8-10m/min | per month: | 30 sets |
| High Light: | metal roll forming machine,sheet metal roll forming machines |
||
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

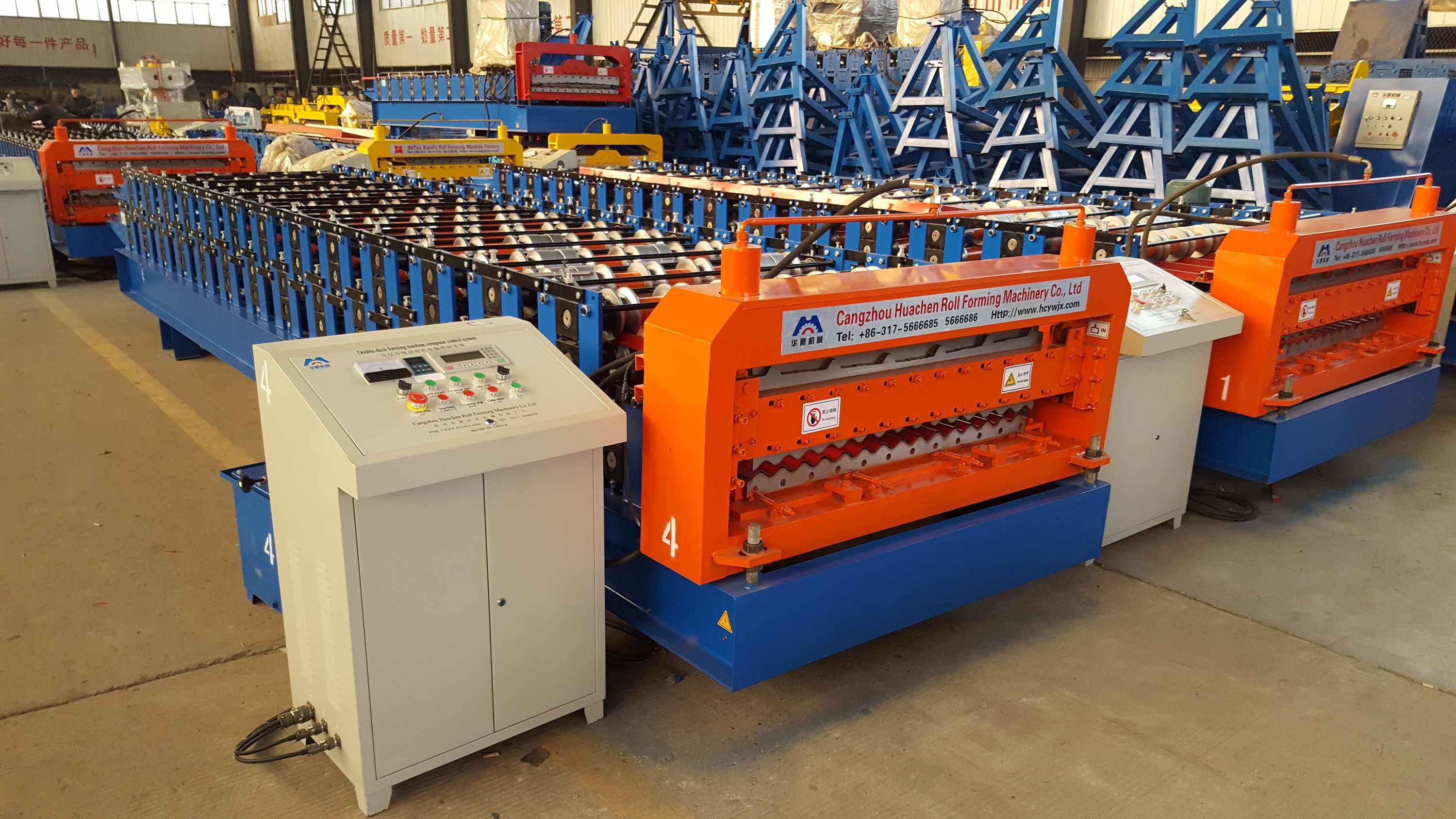

Main parameters
| No. | Main parameter of roll forming machine | |
| 1 | Suitable to process | Steel,Color steel plate,GI,Aluminium sheet... |
| 2 | Width of the plate | 1200mm |
| 3 | Thickness of the plate | 0.3-0.8mm |
| 4 | De-coiler | Manual one, can load 5 tons raw material |
| 5 | Rollers for forming |
Up layer: 12 rows Down layer: 12 rows |
| 6 | Diameter of the roller | 80mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4kw |
| 9 | Productivity | 8-12m/min |
| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3kw |
| 13 | Processing precision | Within 1.00mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 6.5T |
| 18 | Dimensions | 7.5*1.65*1.60m |
| 19 | Voltage | 380V 50Hz 3phases(changeable as needs) |
| 20 | Certificate | CE/ISO |
| Our machine | Influence of the machine | |
|
Main forming machine body |
High strength H350 or H400 steel. machine through milling machine after welding |
Sturdy and durable, ensure the plate standard |
|
Material of the roller |
High grade No.45 forged steel |
Ensure the forming effect of the panel and the use age will be longer,the surface of the panel |
|
Material of the cutting |
GCr12 steel with quenched treatment |
Cutting is out of shape not easily and use age will be longer,the panel size precision |
|
Material of the active shaft |
High grade solid No.45 carbon steel, Shaft diameter is 72mm. |
Improve the integrated mechanic feature of the shaft and keep product standard |
| Control system |
PLC control system,some elements are imported from Japan and Germany |
Machine become more accurate and more stable |
