Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material

Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material

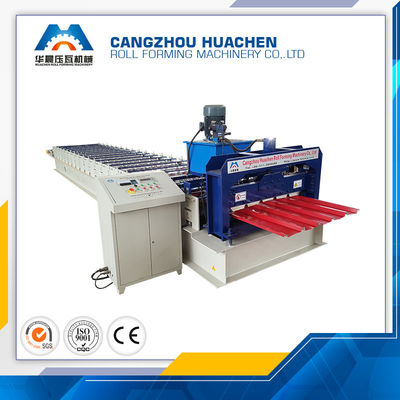

Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material

Duży Obraz :  Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: HC
Orzecznictwo: ISO CE
Model Number: HC32
Zapłata:
Minimum Order Quantity: 1set
Cena: USD8000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month

Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material

Opis
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine cutting blade: Cr12
High Light:

roof tile roll forming machine

,

cold roll forming machine

Product Description

Composition of machine:

1. 5 ton manual decoiler
2. Feeding→pre-cutting→forming station→Post cutting system
3. Manual out table
4. Hydraulic station
5. Control desk
6. Spare part list

Profile, layout & production flow:

Material of the profile: Q195, Q235, GI or color steel
Thickness range: 0.4-0.6mm
Coil width: 1250mm
Height: 25±1,effective width: 1100±6mm
Finished product length: from 500 mm to (at least) 12’000 mm

Layout of machine(only for reference, the exactly one will be send to customer in 20 days after confirmed order)
Working direction base on customer request:

Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 0

The production flow of equipment:

Manual decoiler→ Feeding→roll forming→pressing→post cutting →out table

Machine Composition
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 1
1: 5T manual decoiler
Dimensions
1700mm*1000mm*800mm
Width of feeding
1250mm
Capability
5 Ton
Inter diameter
480mm-570mm
Mode of expand &fight
inner expand &fight by manual
Way of feeding
manual
Color
Blue (or base on customer request)
Quantity
1
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 2
2: Feeding→roll forming
Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type
adjustable
Feeding width
1250mm
Entrance and guide roller
material is SAE1045, HRC48-52° surface with chrome
Quantity
1
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 3
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 4
Forming Section
Material of the profile
Q195, Q235, GI or color steel
Thickness range
0.4-0.6mm
Main motor power
5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Roll station
about 11 stations (according the final design)
Roller material
ASTM1045 chrome plated surface with chrome, CNC,
Shaft diameter
¢70mm material: SAE1045 with quenching and tempering
Machine roll forming speed
2-4m/min
Transmission
by chain, one inch
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
Machine adopt metal wall as station
To avoid accidents, all of drive part adopt protect cover
Color of machine
Blue and yellow (or base on customer request)
Quantity
1
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 5
Pressing system
Pressing after forming
Press the sheet after roll forming to required length
Hydraulic drive uses the same hydraulic unit with cutting
Material of mold
Cr12, 58-62 HRC hardness
Pressing by hydraulic, 5.5KW
Working pressure
12Mpa adjustable
Tolerance of length
+/- 1.5mm for each piece end product
Quantity
1
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 6
Post cutting system
Cutting after forming
Cut the sheet after roll forming to required length
Hydraulic drive uses the same hydraulic unit with pressing system
Material of blade
Cr12, 58-62 HRC hardness
Cutting power by hydraulic, 5.5KW
Working pressure
12Mpa adjustable
Tolerance of length
+/- 1.5mm for each piece end product
Quantity
1
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 7
3: Output table:
Frame
welding by tube
Size
about 1.0m long*1.0mwide*0.9mhigh
One out table with some support roller
Supporter roller
ASTM 1045 with chrome
Diameter of rollers
55mm
Color
Blue
Quantity
2units
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 8
4: Hydraulic station
Hydraulic power
5.5kw
Working pressure
12Mpa adjustable
Solenoid valve
2 groups (1 for pressing and 1 for post cutting)
Hydraulic oil
46# hydraulic oil
Color
Blue (or base on customer request)
Quantity
1
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 9
Colored Steel Trapezoidal Roofing Sheet Roll Forming Machine PPGi GI Material 10
5: Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided

Operating system language
English and Chinese
Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Computer used to control length & quantity
Machine will automatically cut to length and stop when required quantity is achieved
Length inaccuracy can be amended easily.
Control panel
Button-type switch and touch screen
Unit of length
millimeter (switched on the control panel)
PLC brand
Panasonic
Frequency converter brand
Yaskawa
Touch screen
Taiwan Weinview
Color
gray
Quantity
1
