|control system:||Panasonic PLC||cutting method:||hydraulic cut|
|working speed:||8-10m/min||per month:||30 sets|
Today the Chinese manufactured panel roll formers are making most world’s steel fabricators dreams come true, it is no longer a non-affordable business by using many panel roll formers in workshop to produce in large quantity and a variety of different profiles.
However, the quality of Chinese panel roll formers are always on the a huge debate, and hundreds of different online offers make a decision even more difficult, as you may need to visit lots of different factories to find out the real quality they are making.
Now you don’t have to be worried that we offer you a balanced solution with decent quality make you business to another level, meanwhile a customized configuration make the price more transparent and affordable.
What we can offer is a versatility and meanwhile quality assurance for any panel machines from economic basic production speed to fast panel lines up to 50m/min:

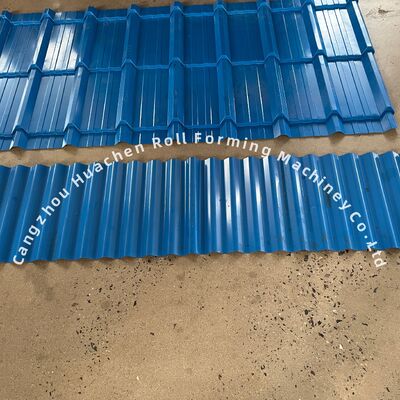

We offer a range different panel roll formers for wall, roof, steel decks, step tiles &standing seam profiles

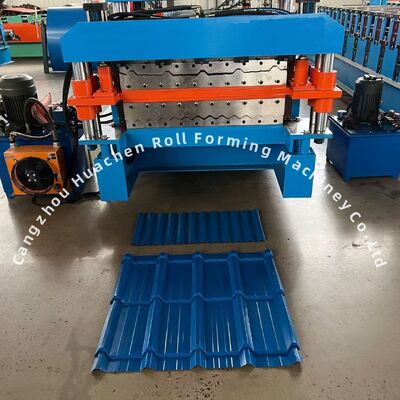

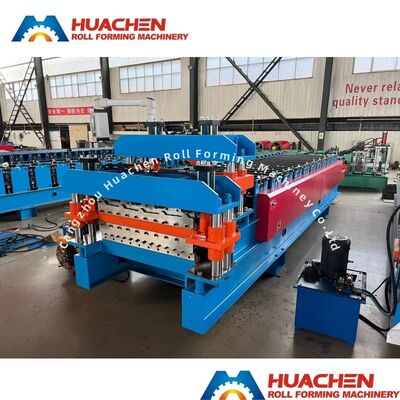

This tile forming machine is the special roll forming machine for steel sheet cold-form industries. It can continuous form the steel sheet according to customer’s requirement, automatically cut to length. This equipment has many advantages, like high forming speed, low noise, stable transmission, easy operation, good look and so on.
|Suitable material||Type||Color steel sheet|
|Yield Strength (Mpa)||230-300|
|Width (mm)||According to the profile|
|2||Producing Speed (m/min)||8-10||including cutting time|
|7||Depend on actual design|
|4||Hydraulic station power(KW)||9||Depend on actual design|
|3||Depend on actual design|
|6||Uncoiler motor power||2.2||Depend on actual design|
|7||Total power||21.2||Depend on actual design|
|8||Power||AC380V,50Hz,3 Phase||According to customer|
|9||Dimension (L×W×H, m)||20×3×2||Depend on actual design|
|1. Decoiler system||Arm type automatic decoiler (With ultrasonice control)||1set||Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.|
|2. Main forming system||Pre-shearing device||1set||

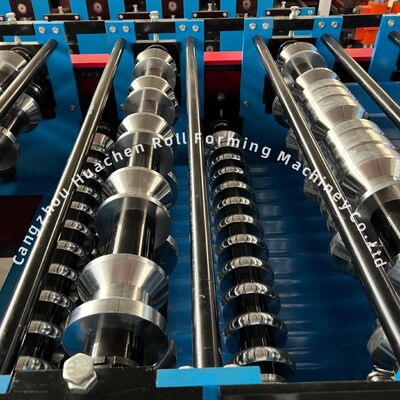

1.Roller material:No.45 steel with surface hard chrome painted.
2. Roller shaft material: No.45
3. Roller inner supporting structure type: guide column
4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear
5.Cutting blade material Cr12 quenched treatment
6.Punching die material adopts No.45 steel with nitride treatment.
|Feeding guide device||1set|
|Film covering device||1set|

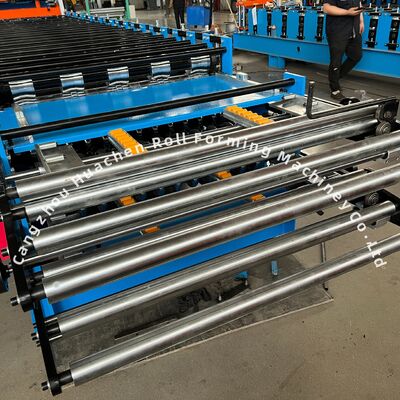

|Roll forming system||1set|
|Complete safety cover||1set|
|3. Output system||Support table||2set||For supporting the finished plate|
|4. Hydraulic system||1set||Separated hydraulic station for the main machine and decoiler.|
|5. Electric control system||1set||
1. PLC Control, encoder automatic cutting in length
2. Operation stage: Touch screen+ button
3. AC frequency for adjusting the speed
Decoil →Guiding system →Roll forming →Punch to length→Cut to length →Output the finished products
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: My current machine rollers need to be replaced. Would you be able to assist me?
A: Yes. Send us your profile and specifications then we will manufacture the rollers for you
Q: What kind of controls do you use on your machines?
A: AMS, Delta, Schneider, Siemens, and Mitsubishi
Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
