High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System

High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System
High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System

Duży Obraz :  High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System

Szczegóły Produktu:
Miejsce pochodzenia: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO/CE
Numer modelu: HC28-13
Zapłata:
Minimalne zamówienie: 1set
Cena: 12000-17000USD
Szczegóły pakowania: Main machine is nude,the computer control box is packed by carton box
Czas dostawy: 30days
Zasady płatności: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Możliwość Supply: 20 sets/month

High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System

Opis
Power(W): 5.5KW Warranty: 18 month
control system: Panasonic PLC cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
High Light:

sheet metal roll forming machines

,

corrugated roll forming machine

Product Description

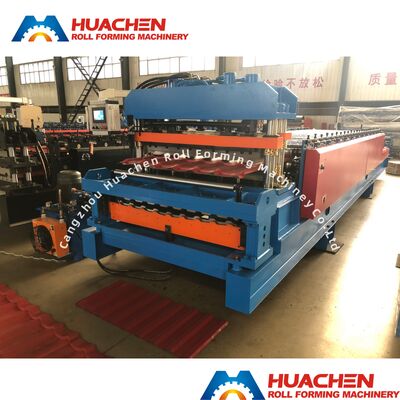

Double layer roll forming machine with the capable of forming a limited site area in two sections, and can quickly transform products, affordable, can be the perfect combination of the two models of devices into one, two plate replacement time becomes shorter, and also improve the rate of output.

Manual Un-coiler
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted
Auto Main Forming System
◊ Max Feeding width:1220 mm

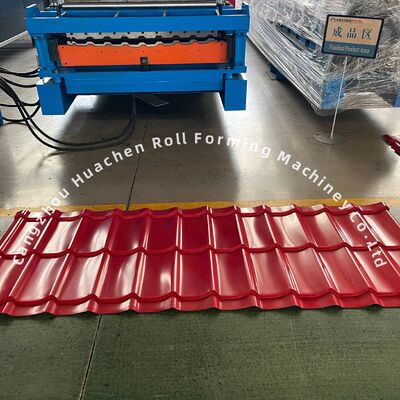

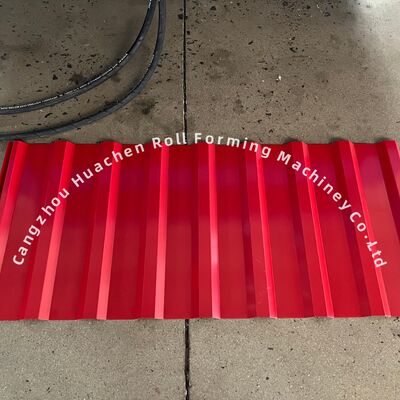

◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm Down level 95 mm
◊ Forming station: Upper level 12 stations. Down level 12 stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

 High Speed Double Layer Corrugated Roll Forming Machine Panasonic PLC Control System 0



Why choose us?
1.We can make and design all kinds of roll forming machine according to customer’s requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers’ requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
