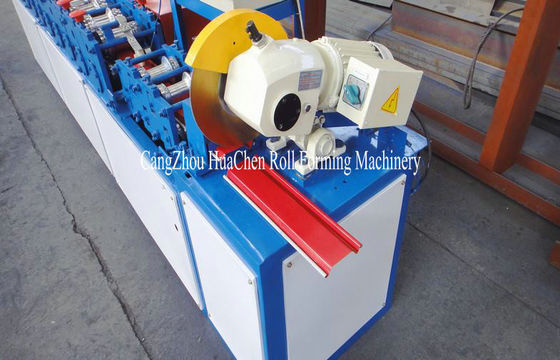

Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip

Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip
Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip

Duży Obraz :  Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip

Szczegóły Produktu:
Miejsce pochodzenia: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO
Numer modelu: HC90
Zapłata:
Minimalne zamówienie: 1set
Cena: 5000-19000USD
Szczegóły pakowania: Main machine is nude,the computer control box is packed by carton box
Czas dostawy: 30days
Zasady płatności: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Możliwość Supply: 20 sets/month

Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip

Opis
High Light:

steel roll forming machine

,

roll forming machinery

Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip





Quick Details

  1. Ridge Cap finishes off hips and ridges.
  2. A ridge capping provides an effective watertight barrier, as well as an aesthetic finish to the cut ends of the sheet at the ridge and hip lines.
  3. Ridge Cap can provide the utmost protection in roofing with its industry-leading design to decorate as well as optimize the function of the roof and increase the life span of the roof.
  4. Our many different metal material options provide you with a wide array of design options to consist with your shingle style.
  5. Roof ridge cap made of fiberglass provide a watertight, and easy to install and are long-lasting solutions for utility buildings.
  6. Our roll forming machines can be designed according to client’s sample or profile drawings, various ridge cap profiles can be obtained by our machines, the roof ridge tile can be used to construct the buildings together with the step-tile roof panels.

Ridge Tile or Cap roll forming machine brief specifications


This ridge cap roll forming machine can rollform metal ridge which is mostly used with colorful roofing tile sheets. The whole roll forming line buildup by de-coiling (mainly consists of un-coiler and its base), gearing rigging, roll stand and main machine, pressuring system, cutting equipment, hydraulic system, control system, and product supporter.


Ridge Tile Cap roll forming machine main parameters



Item Content
Raw material thickness: 0.4-0.6mm
Line speed: 3-5m/min
Rollers station 12 sets
Main power: 4kw
Hydraulic station power: 4kw
Hydraulic pressure: 16Mpa
Control system: PLC Control (Panasonic brand); Code (Omron brand)
Tolerance of length: 10m+/-2mm
Material of Sheet: Soft Quality (Annealed) Galvanized Sheet
Total Gross Weight: About 3500kgs
Line size (Lx w x h) 7500 mm×1000 mm×1100 mm

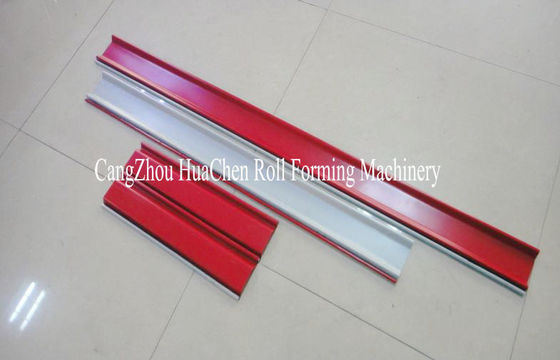

Related Ridge cap Tile Profiles


We can manufacture as per customer provided drawings or real objects of sectional materials, ridge Tile, Roof cap, metal ridge, customization is welcome.



Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip 0Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip 1Full Automatic Fly Saw Cutting Shutter Door Forming Machine Making Steel Strip 2



Machine specification

  1. The system adopts hydraulic drive mode, up and down clamp to achieve the clamping steel plate;
  2. unique parallelogram hinge mechanisms to achieve the flap rotation to bending plate, the maximum bending angle of up to 125 ° (work piece minimum angle of 55 °), without using a mold. Back-gauge positioning mechanism is to achieve the precise positioning of plates, it is CNC controlled.
  3. The pressure compensated, load sensing hydraulic system.
  4. The machine is configured with the longitudinal slitter, slitting strip width can be adjusted.
  5. Rain penetration through tile roofs is often caused by the cracking of sand and cement adhesive frequently used for tiles.
  6. Sand and cement adhesive has little flexibility and can crack due to natural movements in a house or temperature fluctuations.
  7. Metal flashing roll formed products, such as the tile cap has been purposely developed to overcome the disadvantages of the traditional sand and cement adhesive.
  8. Tile ridge cap pointing material was tested to cyclic fatigue loading conditions.
  9. The sample system adhesive successfully passed the test criteria at the design pressure.
  10. The following is the specification for the metal roof ridge tile roll forming machine.
  11. We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. PLS contact with us for the further details!
