Szczegóły Produktu:
|
| High Light: | cold roll forming machine,roof panel roll forming machine |
||
|---|---|---|---|

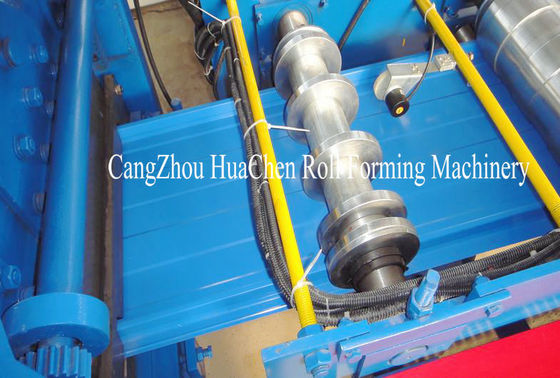

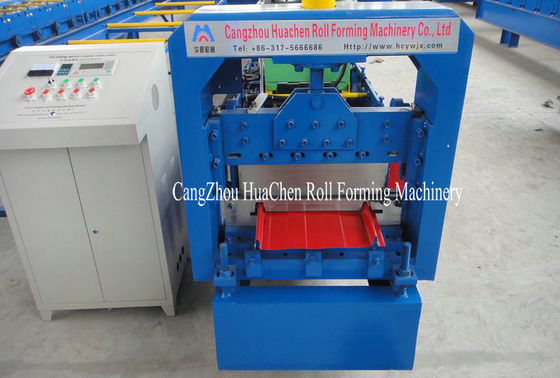

Hidden Type Roof Metal Sheet Roll Forming Machine Special Designed With CE / ISO
Quick Detail: Hidden Type Roofing Sheet Roll Forming Machine Special Designed for 500mm material
1. Suitable to process: Color steel plate
2. Width of the plate: 500mm
3. Rollers: 16 rows
4. Dimensions: 7.8*1.35*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: Hidden Type Roofing Sheet Roll Forming Machine Special Designed for 500mm material
Roof Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roof Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
500mm |
|
3 |
Rollers |
16 rows |
|
4 |
Dimensions |
7800*1350*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
7 |
Thickness of the plate |
0.3-0.6mm |
|
8 |
Productivity |
8-10m/min |
|
9 |
Diameter of the roller |
Φ66mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

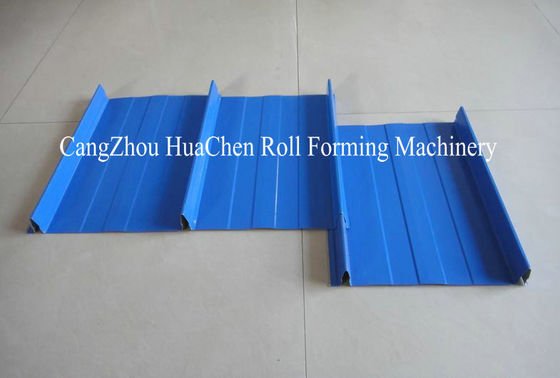

Application: Hidden Type Roofing Sheet Roll Forming Machine Special Designed for 500mm material
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. operations safety
2. nice appearance, high quality
3. reasonable price
4. CE certification
5. ISO certification
