Szczegóły Produktu:
|
| raw material: | aluminum sheet | type: | Roofing Sheet Roll Forming Machine |
|---|---|---|---|
| use: | roof panel | profile: | customized |
| cutting methold: | hydraulic cut | roller stations: | 14 |
| thickness: | 0.3-0.7mm | ||
| High Light: | roof tile roll forming machine,roof panel roll forming machine |
||

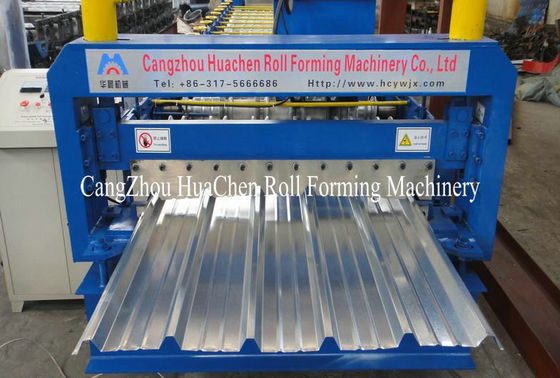

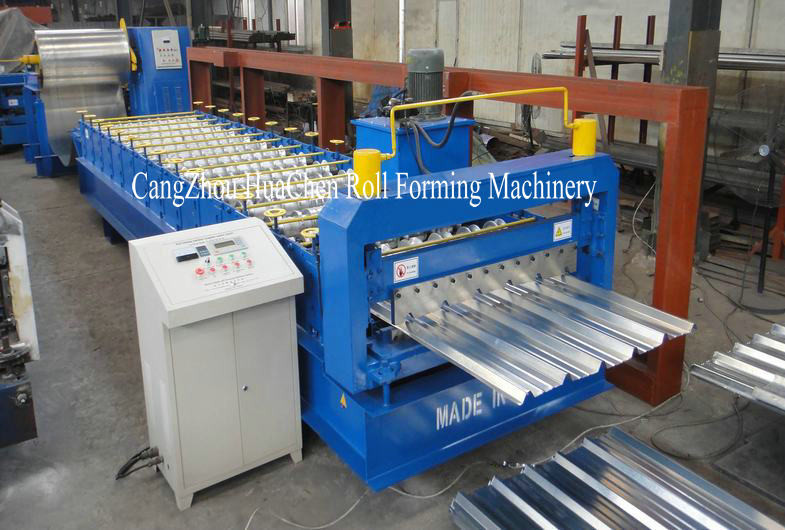

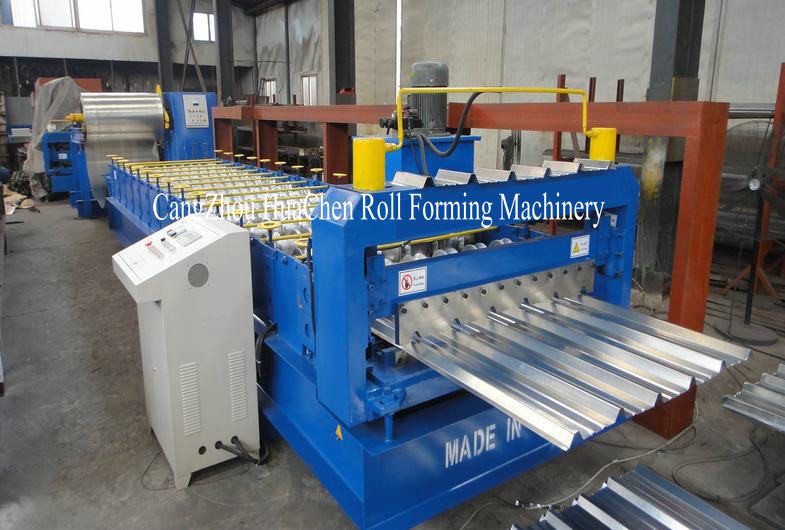

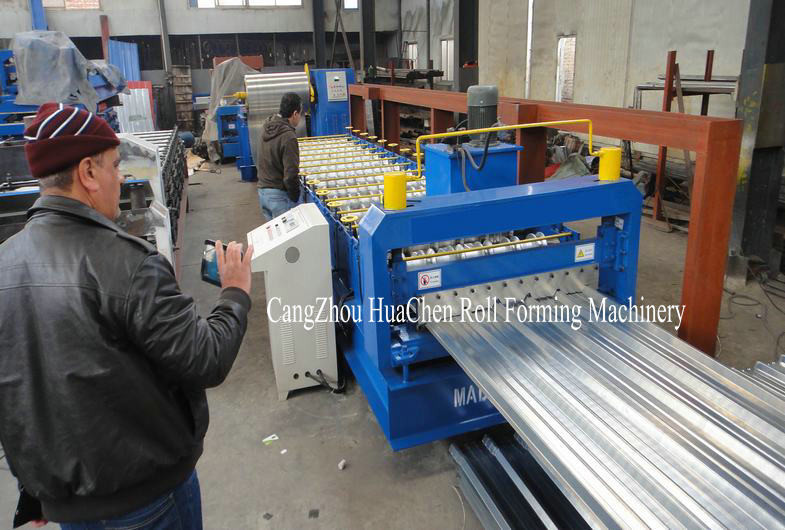

Our firm is engaged in offering a wide array of Corrugated Roof Roll Forming Machine that is widely used in construction industry for making the roof tile and wall panel outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Corrugated Roof Roll Forming Machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1200mm
3. Rollers: 14 rows
4. Dimensions: 7.1*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Roof Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roof Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1200mm |
|
3 |

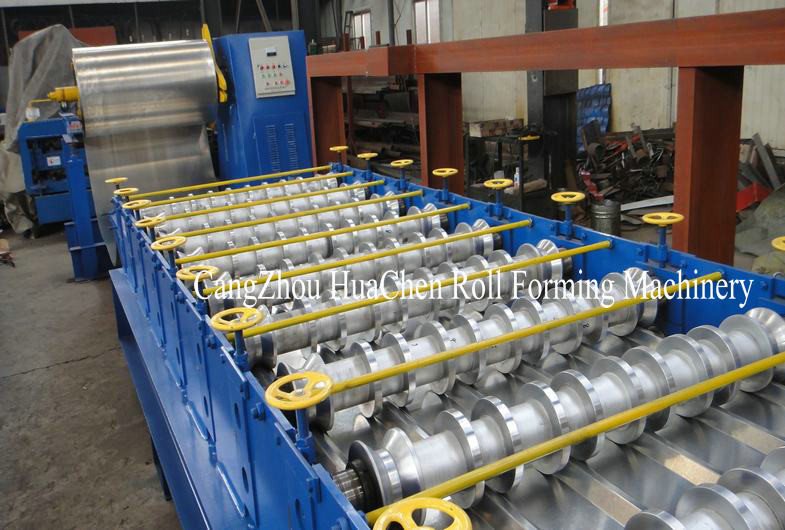

Rollers |
14 rows |
|
4 |
Dimensions |
7100*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. save space
2. easy install
3. perfect service
4. excellent quality
5. save freight
