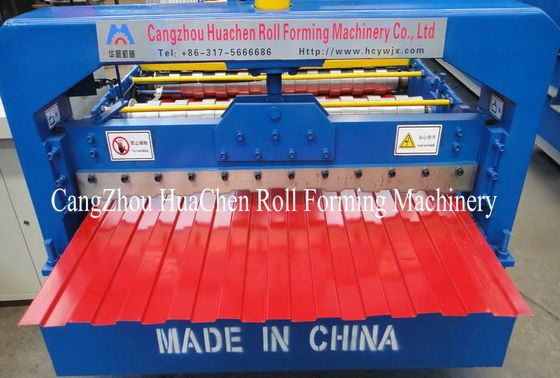

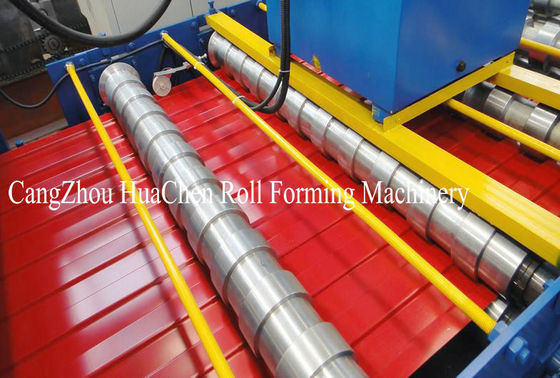

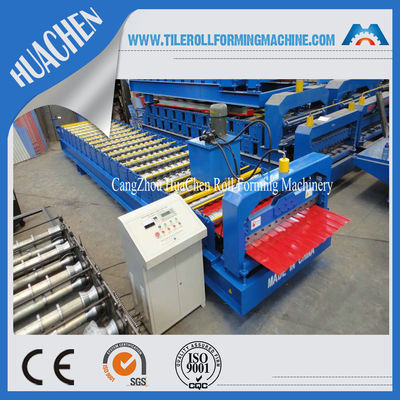

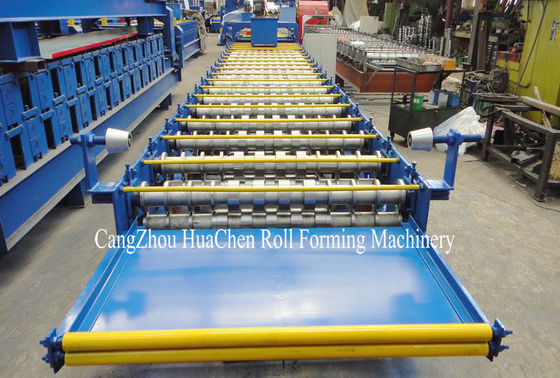

Hard Treatment Wall Panel Roll Forming Machine with Color steel plate
Color Sheet Profiles Roll Forming Machine, Color Coated Roof Panel Making Machine
1.Working Flow: Roller Hard Treatment IBR Metal Wall Panel Roll Forming Machine
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting
Quick Detail: Roller Hard Treatment IBR Metal Wall Panel Roll Forming Machine
1. Suitable to process: Color steel plate
2. Width of the plate:1250mm
3. Rollers: 18 rows
4. Dimensions: 8.6*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel (plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: Roller Hard Treatment IBR Metal Wall Panel Roll Forming Machine
Wall Panel Roll Forming Machine Main parameter
|
No. |
Main parameter of Wall Panel Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1250 mm |
|
3 |
Rollers |
18 rows |
|
4 |
Dimensions |
8600*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# stee (plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application
This type of sheet can be widely used in plant, house, storage and simple wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1.ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
