Roof Wall Double Layer Roll Forming Machine 0 - 15m / min Manual Hydraulic Decoiler

Roof Wall Double Roll Former With 0 -15m/min and Manual or Hydraulic Decoiler

Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1250mm
3. Rollers: 12/15 rows
4. Dimensions: 9.5*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

 Main parameter

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

Application

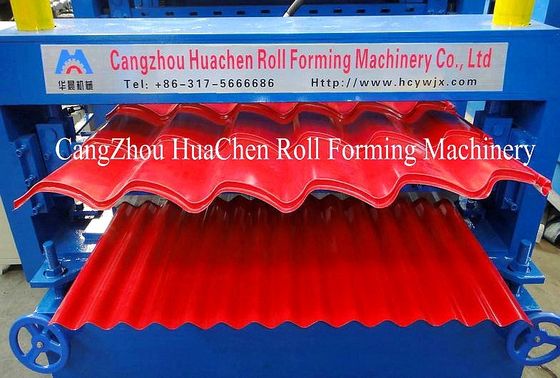

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

Competitive Advantage
 1. CE certification
2. noiseless
3. easy operate
4. high output
5. easy maintain
