0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed

0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed
0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed

Duży Obraz :  0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed

Szczegóły Produktu:
Place of Origin: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO/CE
Model Number: HC110
Zapłata:
Minimum Order Quantity: 1set
Cena: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed

Opis
color: blue type: automatic
control system: PLC control cutting method: fly saw cutting
speed: 8-10m/min
High Light:

roll forming machinery

,

door frame roll forming machine



0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed

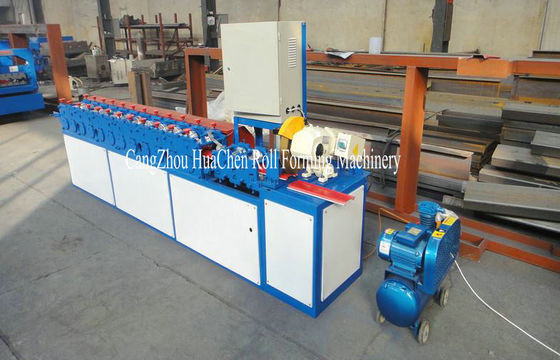

Roller Shutter Door Forming Machine introduction

  1. Roller shutter door forming machine is configured with PU injection or without PU injection.
  2. It can make roller shutter doors with high security and is also used for manufacturing rolling fire doors, rolling steel doors, fire doors and other door products.
  3. Our machine adopts advanced technology and is designed by innovative technician.
  4. Therefore, the machine has high efficiency and good working performance.

0.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 00.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 10.5 - 1.2mm Thickness Shutter Door Slat Steel Roll Forming Machine 5 - 15 m / min Speed 2

General Description

Roller shutter door forming machine is able to produce rolling fire doors, storm doors, rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, insulated fire doors and other doors.

This kind of machine is provided with PU injection or without PU injection.

We can customize the machine if you have special requirements. We promise our product quality is high and the price is competitive.


Application:

Roller shutter forming machine is widely used for producing products used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls and shopping centers. It is designed especially for manufacturing dock doors, distribution outlets, food concession stands and other panels.


Features:

1. Roller shutter door forming machine is configured with domestic brand or Italy brand PU online foaming facility.
2. It has double head uncoiler help to increase coil loading efficiency.
3. The straightening device can be adjusted to decrease the twist or curve distortion caused in process of roll forming.
4. The sufficient rolling stations guarantee a perfect profile section.
5. Roller shutter door forming machine adopts PLC and inverter controller.
6. Non-stop shearing adopted can increase working efficiency.


Technical Specifications for Roller Shutter Door Forming Machine

1. PU injected roll shutter door machine
1.1 Steel coil thickness: 0.3-0.5mm
1.2 Steel coil width: 117-310mm
1.3 Rolling stations: 41
1.4 Main motor power: 11KW
1.5 Total weight: approximately 12 Ton
1.6 Working speed: 20-28m / min


Parameter of Single sheet roll shutter door machine

NO. Item Parameter Remark
1 Suitable material Type Galvanized steel -
Thickness (mm) 1.0 -
Yield Strength (Mpa) 450-550 -
Width (mm) 120/145/157 -
2 Forming Speed (m/min) About 20-25 exclude cutting time
3 Forming main motor power(KW) 3*6 Depend on final design
4 Main machine Hydraulic station power(KW) 5.5 Depend on final design
5 Total power 23.5 Depend on final design
6 Power AC415V, 50Hz, 3 Phase As per customer
7 Dimension (L×W×H , m) 20×3×1.5 Depend on final design
