Szczegóły Produktu:
|
| Tile Type: | Steel | Power(W): | 5.5kw |
|---|---|---|---|
| Voltage: | 380V | Weight: | 4.5T |
| control: | PLC computer control | ||
| High Light: | roll forming equipment,roof tile roll forming machine |
||

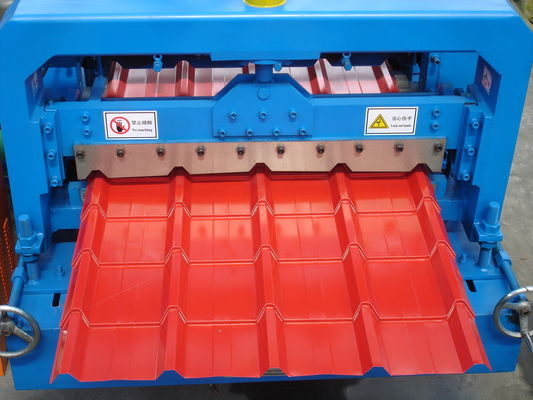

16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness
1.Main Accessories:
| 1 | Decoiler(manual or hydraulic for options) | 1 set |
| 2 | Feeding device | 1 set |
| 3 | Main Forming Machine | 1 set |
| 4 | Hydraulic step press device | 1 set |
| 5 | Hydraulic cutting device | 1 set |
| 6 | Hydraulic Station | 1 set |
| 7 | PLC computer control system | 1 set |
| 8 | 2m Run Out Table(auto stacker for options) | 2 sets |
2.Main Technicial Parameter:
| 1 | Inner diameter of manual decoiler | 500mm |
| 2 | Outer diameter of manual decoiler | 1200mm |
| 3 | Weight capacity of manual decoiler | 5T |
| 4 | Appearance Size | 10000mm*1350mm*1510mm |
| 5 | Raw Material | colored steel or galvanized steel |
| 6 | Roller material | high grade 45# forged steel,polished,heated,quenched |
| 7 | Blade Material | CR12 with polished,heated and quenched HRC60-62 |
| 8 | Chrome Coating | coated with 0.05mm hard chrome |
| 9 | Control System | PLC control |
| 10 | Main Motor Power | 5.5 KW |
| 11 | Hydraulic Power | 4 KW |
| 12 | Roller station | 16 rollers |
| 13 | Material of chain | high grade 45# steel:polished,heated,quenched HRC 45-50 |
| 14 | Speed of Product | 3-4m/min |
| 15 | Thickness range | 0.3-0.6mm |
| 16 | Type of cutting | hydraulic cutting |
| 17 | Coil Width | 914mm(max1250mm,or as your requirement) |
| 18 | Cover Width | 800mm(or as your requirement) |
| 19 | Material of rack | complete welded structure of A3 steel plate |
| 20 | Machine frame stand | welded with 36# I-steel |
| 21 | Type of forming machine | single station with chain transmission |
| 22 | Thickness of frame | 18mm |
| 23 | Shaft Diameter | 80mm |
| 24 | Weight | about 8T |
| 25 | Voltage | 380V 50HZ 3Phases( or as your local requirement) |
| 26 | Electrical control | PLC frequency control system with touch screen in English |
3. Work flowing:
Decoiling -- Feeding guide -- Roll forming -- Press step -- Hydraulic cutting -- Running out
4. Payment Term and Condition:
| 1 | Payment Term | 30% T/T in advance, 70% T/T before shipment |
| 2 | Delivery Time | Within 45 Working Days after receipt of the down payment |
| 3 | Warranty | 1 year and life-long maintenance |
| 4 | Installation and commissioning | Our engineer will go to make installation there,buyer pay our engineer 100USD/day,and provide accommodation,visa and the round-trip ticket fee |
5. Use:
| 1 | It is widely used in load bearing roof and buttree of large and medium-size industrial and civilian buildings |
| 2 | Like factory,workshop,garage, warehouse, locomotive shed, hanger, exhibition building, cinema, theatre, stadium, garden etc |
| 3 | They are widely used as the supporter of roof and wall in large-scale and mid-scale construction |
