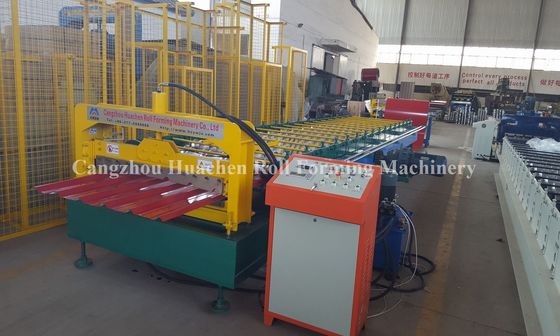

Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type
Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type
Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

Duży Obraz :  Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

Szczegóły Produktu:
Miejsce pochodzenia: China
Nazwa handlowa: HC
Orzecznictwo: ISO CE
Numer modelu: HC25
Zapłata:
Minimalne zamówienie: 1set
Cena: USD8000-15000
Szczegóły pakowania: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Czas dostawy: 30 work days
Zasady płatności: D/A, Western Union, L/C, T/T
Możliwość Supply: 20 sets per month

Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type

Opis
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: 0.15mm-0.4mm Galvanized Steel Automatic Roof Roll Forming Machine / Roof Sheet Roll Forming Machine cutting blade: Cr12
High Light:

roof tile roll forming machine

,

cold roll forming machine



Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type



Main Parameters:



NO. Type Specification Remarks



1.



Raw material

Type GI
Thickness 0.8-1.2mm
Yield strength 235Mpa TO 350Mpa



2.



Decoiler

Operation Manual
Weight apacity 6tons







3.







Main body

Roller station 28 stations
Diameter of shaft 90mm
Material of rollers 45# steel with chrome 0.05mm
Material of shaft 45# steel with chrome 0.05mm
Frame 350mm H-Beam
Chain 1.5 inches



4.



Cutter

Operate Automatic hydraulic type
Blade Material CG12
Number One hydraulic cutter



5.



Power

Pump motor for cutter 5.5kw
Main motor 15kw
Voltage 380V 50HZ





6.



Control

system

Electric Box

PLC control system, Inverter,

encoder


Language English
9. Speed 8-12m/min


































Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type 0Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type 1Floor Panel Metal Roll Forming Machine / Roofing Sheet Making Machine 1050 Type 2

Our Services



1). Packing method: Nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box. The seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping out the goods.



3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit from the buyer.



4). Service: We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.



5). Warranty: 12 months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee. We will also send one set CD and specification(Chinese and English) to you with the machine, they can teach you how to operate the machines.



6). Package: One complete equipment needs a 20 feet container to hold.
