Dom /Produkty/Maszyna do formowania zwojów dwuwarstwowych/Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine

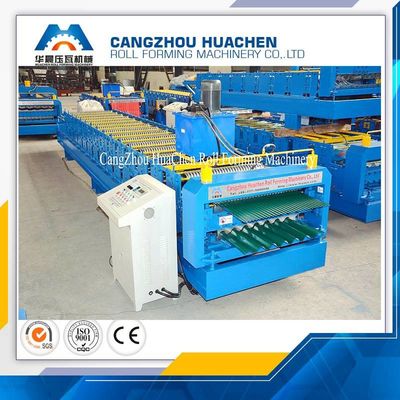

Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine

1set
MOQ
12000-17000USD
Cena £
Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model Number:: double layer roll forming machine
Warranty: 18 month
control system: PLC control
cutting method: hydraulic cut
working speed: 8-10m/min
per month: 30 sets
Podkreślić:

corrugated roll forming machine

,

metal roll forming machine
Podstawowe informacje
Place of Origin: Botou Hebei China
Nazwa handlowa: HC
Orzecznictwo: ISO/CE
Model Number: HC8-33
Zapłata
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
opis produktu

corrugated Iron roof making machine double layer roll forming machine roof tile making machine



Product Description

1.. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Processing technique and deployment

corrugated Iron roof making machine double layer roll forming machine roof tile making machine by the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.

User parameters: the number of sheets, the length of the first section, distal, pitch, number of sections, pre-press section, and so on.

the material used in aluminium sheet manufacturing machinery (we can provide the material also)

2. corrugated Iron roof making machine double layer roll forming machine roof tile making machine Components of line:
No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4 Pressing System set 1
5 Cutting System set 1
6 Output Table set 1

corrugated Iron roof making machine double layer roll forming machine roof tile making machine Description Introduction
Working efficiency

8-12m/min


Thickness of Material

0.3--0.8mm

(can be changed according to customers need)


Width of material

914mm;940mm;1000mm;1200mm;1220mm;1250mm

According to customers need


Control system

PLC(The brand can be choose)


Uncoiler system

5Ton Manual Operation(1250mm width)


Forming by rolling

13 rows

(According to the machine design)


Roller material

GCR15 Aluminium processing after quenchin HRC58-62°C,Chrome plated


Shaft and the diameter of axle

45#Aluminium-processing ,diameter of axle=80mm


Main part power

5.5kw


Hydraulic motor power

4kw


Hydraulic pressure

12Mpa


Scissor material

Cr12Mov, herd steel HRC 58-62°C


length tolerance

±1.5mm


voltage

380V, 50HZ,3 phase

(adjustable by customer needs)


Frame form

Middle plate


Driving Method

Chain


Color

Yellow and blue(adjustable)


Size

length*Width*Height - 8.2*1.65*1.5m


weight

about 5.0T


Package

Nude package in 1*20GP container


Delivery date

30 working days


Payment Method

30% T/T in advance and balance

70% after inspection confirmation before shipment.



If you have your own drawing, please send it to us,

we can design the machine, depend on your drawing.

Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine 0Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine 1Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine 2Corrugated Iron Double Layer Roll Forming Machine / Roof Tile Making Machine 3
